SC8316G076MOAC220/50 https://www.bdiexpress.com/medias/INDASVVALVEX-8316G074-SC-MO-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8MTUzNTN8aW1hZ2UvanBlZ3xhRFJtTDJneVl5OHhNRGM1TnpjMU5UUTVPRFV5Tmk5SlRrUkJVMVpXUVV4V1JWaGZPRE14Tmtjd056UmZVME5mVFU5ZlFsSlRYek13TUhnek1EQXVhbkJufDNlZjA0MDNkM2IzNGExNmI2MWEwMTAxOWM4ZjUzNzBjYzk3YTI3ZjY4MDQwMGNiN2I4MTExMjYwMDAwMDEzNDM
27051060 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

SC8316G076MOAC220/50

Description

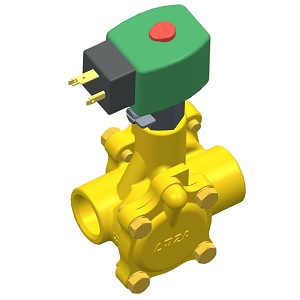

SC8316G076MOAC220/50 SOLENOID VALVE, 3/4 X 11/1 3NO BRASS 6.1/F W (SMARTCATALOG)

Solenoid Diaphragm Valve; 3/4" FNPT Port; 3 Port - 3 Way; 2 Position; 220/50 VAC; Hydraulic - Pneumatic; Solenoid - Air Pilot/Air Pilot - Spring Return; Air - Inert Gas 150 PSI/Water 125 PSI; 32 To 180 Deg F; Buna-N Seal; Brass

Part #

SC8316G076MOAC220/50

BDI #
27051060

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
ASCO VALVE
Minimum Buy Quantity
1
UNSPSC
40141600
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Diaphragm | Solenoid
Port Type
3/4" FNPT
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
220/50 VAC
Media
Hydraulic | Pneumatic
Maximum Pressure
Air - Inert Gas 150 PSI | Water 125 PSI
Operating Pressure Range
Air - Inert Gas 10 To 150 PSI | Water 10 To 125 PSI
Operating Temperature Range
32 To 180 Deg F
Seal Type
Buna-N
Body Material
Brass
Inch - Metric
Inch
Other Features
4.8 Cv Factor | 11/16" Orifice Size | Normally Open | Ambient Temperature 0 To 52 Deg C | Class F | High Temperature | DIN Connection | Manual Operator
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Diaphragm Solenoid
Manufacturer URL
https://www.ascovalve.com
Long Description
Solenoid Diaphragm Valve; 3/4" FNPT Port; 3 Port - 3 Way; 2 Position; 220/50 VAC; Hydraulic - Pneumatic; Solenoid - Air Pilot/Air Pilot - Spring Return; Air - Inert Gas 150 PSI/Water 125 PSI; 32 To 180 Deg F; Buna-N Seal; Brass
