SJ3460-5CU-C6 https://www.bdiexpress.com/medias/INDSMCVALVEX-SJ3260-CU-C4-300x300.jpg?context=bWFzdGVyfHJvb3R8MjI4MjJ8aW1hZ2UvanBlZ3xhREF6TDJoak9TOHhNRFl3TlRRd056VXpOVEV6TkM5SlRrUlRUVU5XUVV4V1JWaGZVMG96TWpZd1gwTlZYME0wWHpNd01IZ3pNREF1YW5CbnwyNzJiMGYwN2I4N2Y1OTg1Yzc3NDhjNzQ0ZjIxMDMxMDhlYjhiMTk5ZDc0Y2MzZjc0Y2UxZDdiNTFiOTlkNjQ4
17858132 Hydraulic and Pneumatic Valves

SMC SMC

SJ3460-5CU-C6

Description

SJ3460-5CU-C6

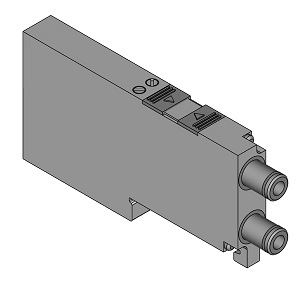

Solenoid Valve; 6 MM Tubing OD Port; 5 Port | 4 Way; 3 Position; 24 VDC; Pneumatic; Solenoid - Air Pilot - Spring | Solenoid - Air Pilot - Spring Return; 102 PSI; 14 To 122 Deg F; HNBR Seal; Zinc

Part #

SJ3460-5CU-C6

BDI #
17858132

Details

9770.0 RSD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price RSD 9,770.00 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0.091
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
6 MM Tubing OD
Number of Ports/Way
5 Port | 4 Way
Number of Positions
3 Position
Actuation
Solenoid - Air Pilot - Spring | Solenoid - Air Pilot - Spring Return
Voltage
24 VDC
Media
Pneumatic
Maximum Pressure
102 PSI
Operating Pressure Range
30 To 102 PSI
Operating Temperature Range
14 To 122 Deg F
Seal Type
HNBR
Body Material
Zinc
Inch - Metric
Metric
Other Features
0.12 Cv Factor | Air Fluid | Centralized Wiring | Non-Polar Type Light/Surge Voltage Suppressor | Non Locking Push Type Manual Override | One Touch Fitting | In/Exhaust Center/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcpneumatics.com
Weight / LBS
0.20141
Long Description
Solenoid Valve; 6 MM Tubing OD Port; 5 Port | 4 Way; 3 Position; 24 VDC; Pneumatic; Solenoid - Air Pilot - Spring | Solenoid - Air Pilot - Spring Return; 102 PSI; 14 To 122 Deg F; HNBR Seal; Zinc
Overall Width
0.394 Inch | 10 Millimeter
Overall Height
1.567 Inch | 39.8 Millimeter
Overall Length
3.744 Inch | 95.1 Millimeter
