SOV 25 S0B 00 https://www.bdiexpress.com/medias/INDMTWVALVEX-7010021200-300x300.jpg?context=bWFzdGVyfHJvb3R8NDA0MHxpbWFnZS9qcGVnfGFHUmhMMmhrTXk4eE1EazBPRGs1T0RNMk5USXhOQzlKVGtSTlZGZFdRVXhXUlZoZk56QXhNREF5TVRJd01GOHpNREI0TXpBd0xtcHdad3xiM2IxYjU0NjdlMmI3MGJiNzBhY2VjNmEwMWU2NWU2Mzc0ODJiYjA0NDE4YWQxZjUxODFkN2NlNzkyNTBjMzc1
20535679 Hydraulic and Pneumatic Valves

METAL WORK PNEUMATIC METAL WORK PNEUMATIC

SOV 25 S0B 00

Description

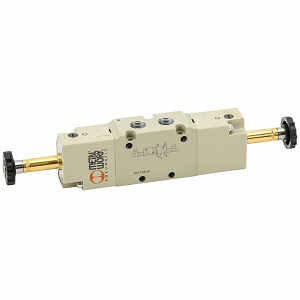

METAL WORK PNEUMATIC SOV 25 S0B 00

Solenoid Valve; 1/8" G; 5 Port - 4 Way; 2 Position; Pneumatic; 24-110-220 VAC/50-60 Hz | 12-24 VDC; Solenoid - Air Pilot - Detent | Solenoid - Air Pilot - Detent Return; 145 PSI; 14 To 140 Deg F

Part #

SOV 25 S0B 00

BDI #
20535679

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
METAL WORK PNEUMATIC
Manufacturer Name
METAL WORK PNEUMATIC
Minimum Buy Quantity
N/A
UNSPSC
40141600
Weight / Kilogram
0.3
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/8" G
Number of Ports/Way
5 Port | 4 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot - Detent | Solenoid - Air Pilot - Detent Return
Voltage
24-110-220 VAC/50-60 Hz | 12-24 VDC
Media
Pneumatic
Maximum Pressure
145 PSI
Operating Pressure Range
14.5 To 145 PSI
Operating Temperature Range
14 To 140 Deg F
Inch - Metric
Inch
Other Features
550 L/Min Flow Rate | 5MM Nominal Diameter | Electro-Pneumatic Type | IP65 Enclosure | Bistable | No Indication
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://metalwork.in
Manufacturer Internal Number
7010021200
Weight / LBS
0.353
Long Description
Solenoid Valve; 1/8" G; 5 Port - 4 Way; 2 Position; Pneumatic; 24-110-220 VAC/50-60 Hz | 12-24 VDC; Solenoid - Air Pilot - Detent | Solenoid - Air Pilot - Detent Return; 145 PSI; 14 To 140 Deg F
Overall Length
7.028 Inch | 178.5 Millimeter
Overall Height
1.26 Inch | 32 Millimeter
Overall Width
0.866 Inch | 22 Millimeter
