SV8220G405DC110V https://www.bdiexpress.com/medias/INDASVVALVEX-8220G405-SV-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8NTgxODh8aW1hZ2UvanBlZ3xhREF4TDJnNU55OHhNRGd3TnpZNU1ESXpNVGd6T0M5SlRrUkJVMVpXUVV4V1JWaGZPREl5TUVjME1EVmZVMVpmUWxKVFh6TXdNSGd6TURBdWFuQm58ODI2NDhhNWYyYzAyMjgwNTFhZTFkZWRhZDYzN2RmYjdhMDM3NjJlOTBjYjUyYTQ3ZTYzY2ExODQ2YzJkZTcxYw
Back to search results
27567276 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

SV8220G405DC110V

Description

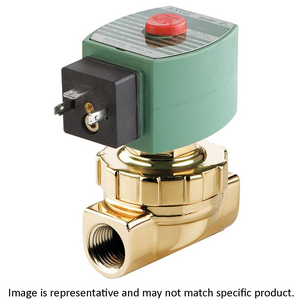

SV8220G405DC110V SOL VALVE

Solenoid Valve; 1/2" FNPT Port; 2 Port - 2 Way; 2 Position; 110 VDC; Hydraulic - Pneumatic; Solenoid - Air Pilot/Air Pilot - Spring Return; Hot Water 100 PSI/Steam 50 PSI; Hot Water 32 To 210 Deg F/Steam 32 To 300 Deg F; EPDM Seal; Brass

Part #

SV8220G405DC110V

BDI #
27567276

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
EMERSON INDUSTRIAL AUTOMATION
Minimum Buy Quantity
N/A
UNSPSC
40141600
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/2" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
110 VDC
Media
Hydraulic | Pneumatic
Maximum Pressure
Hot Water 100 PSI | Steam 50 PSI
Operating Pressure Range
Hot Water 0 To 100 PSI | Steam 0 To 50 PSI
Operating Temperature Range
Hot Water 32 To 210 Deg F | Steam 32 To 300 Deg F
Seal Type
EPDM
Body Material
Brass
Inch - Metric
Inch
Other Features
4.7 Cv Factor | 1/2" Orifice Size | Hot Water - Steam Fluid | Class H | Intermediate Power | DIN Connector
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.ascovalve.com
Long Description
Solenoid Valve; 1/2" FNPT Port; 2 Port - 2 Way; 2 Position; 110 VDC; Hydraulic - Pneumatic; Solenoid - Air Pilot/Air Pilot - Spring Return; Hot Water 100 PSI/Steam 50 PSI; Hot Water 32 To 210 Deg F/Steam 32 To 300 Deg F; EPDM Seal; Brass
Overall Height
4.1 Inch | 104.14 Millimeter
Overall Width
2.25 Inch | 57.15 Millimeter
