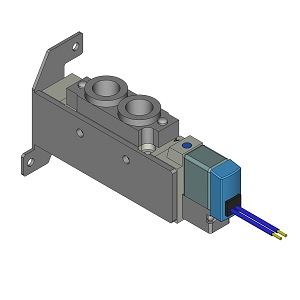

SY5120-VG-01T-F1 https://www.bdiexpress.com/medias/INDSMCVALVEX-SY5120-G-BSE-F1-DC-300x300.jpg?context=bWFzdGVyfHJvb3R8MjI5Njd8aW1hZ2UvanBlZ3xhRGt4TDJnM1pTOHhNRFl3TlRVd01UZzNOREl3Tmk5SlRrUlRUVU5XUVV4V1JWaGZVMWsxTVRJd1gwZGZRbE5GWDBZeFgwUkRYek13TUhnek1EQXVhbkJufDhiNDYyMGUxMjI1MmQ5ZTg1MTM2OWM2ZTVmZDQwNzIzNGNjZTM0NzJiZjE3OGU1NzJhZThhYjczOGZmMGQ1ZGE
18596408 Hydraulic and Pneumatic Valves

SMC SMC

SY5120-VG-01T-F1

Description

SY5120-VG-01T-F1 ; SY5000 SOL/VALVE, RUBBER SEAL

Solenoid Valve; 1/8" FNPTF Port; 5 Port | 4 Way; 2 Position; 6 VDC; Pneumatic; Solenoid - Air Pilot | Air Pilot Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Aluminum

Part #

SY5120-VG-01T-F1

BDI #
18596408

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/8" FNPTF
Number of Ports/Way
5 Port | 4 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot Return
Voltage
6 VDC
Media
Pneumatic
Maximum Pressure
102 PSI
Operating Pressure Range
22 To 102 PSI
Operating Temperature Range
14 To 122 Deg F
Seal Type
Rubber
Body Material
Aluminum
Inch - Metric
Inch
Other Features
0.49/0.61 Cv Factor | Air Fluid | Body Ported | Internal Pilot | Non Locking Type Manual Override | Grommet - 300MM Lead Wire | In/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcpneumatics.com
Long Description
Solenoid Valve; 1/8" FNPTF Port; 5 Port | 4 Way; 2 Position; 6 VDC; Pneumatic; Solenoid - Air Pilot | Air Pilot Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Aluminum
Overall Height
1.85 Inch | 47 Millimeter
Overall Width
1.142 Inch | 29 Millimeter
Overall Length
3.488 Inch | 88.6 Millimeter
