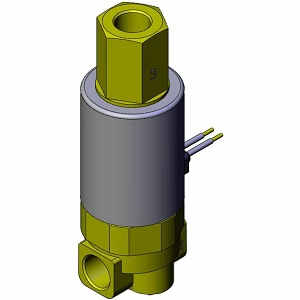

VDW350-5G-3-01N-A-Q https://www.bdiexpress.com/medias/MFRSMCVALVEX-25610728-300x300.jpg?context=bWFzdGVyfHJvb3R8NTg4NXxpbWFnZS9qcGVnfGFEaG1MMmcyTXk4eE1EazFOVEl5TVRVNU9ESXpPQzlOUmxKVFRVTldRVXhXUlZoZk1qVTJNVEEzTWpoZk16QXdlRE13TUM1cWNHY3xkZmUyYjk1YWZmOTg5YjI4OGRjZDg5MDNhMDQ4YTUzMzc3Mjc2NTVlNWZkYWZhNjBmODE2NDliZDJmMGU2NWU5
25610728 Hydraulic and Pneumatic Valves

SMC SMC

VDW350-5G-3-01N-A-Q

Description

VDW350-5G-3-01N-A-Q, VALVE, COMPACT, SGL, BRASS (SMARTCATALOG)

Solenoid Valve; 1/8" FNPT; 3 Port | 3 Way; 2 Position; 24 VDC; Hydraulic | Pneumatic; Solenoid | Spring Return; 145 PSI; 14 To 122 Deg F; Viton Seal; Brass

Part #

VDW350-5G-3-01N-A-Q

BDI #
25610728

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
1
Weight / Kilogram
0
Product Group - BDI
F02234
Valve Type
Solenoid
Port Type
1/8" FNPT
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
24 VDC
Media
Hydraulic | Pneumatic
Maximum Pressure
145 PSI
Operating Pressure Range
0 To 145 PSI
Operating Temperature Range
14 To 122 Deg F
Seal Type
Viton
Body Material
Brass
Inch - Metric
Inch
Other Features
0.28/0.13 Cv Factor Water and 0.3/0.12 Cv Factor Air | Normally Closed - Normally Open | Grommet - Tape Winding Coil Type
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcworld.com
Long Description
Solenoid Valve; 1/8" FNPT; 3 Port | 3 Way; 2 Position; 24 VDC; Hydraulic | Pneumatic; Solenoid | Spring Return; 145 PSI; 14 To 122 Deg F; Viton Seal; Brass
