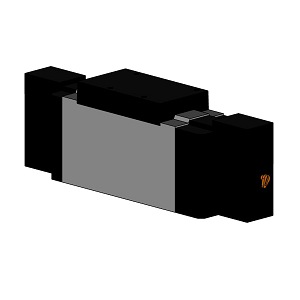

VFS4400R-3FZ https://www.bdiexpress.com/medias/INDSMCVALVEX-VFS4200-FZ-300x300.jpg?context=bWFzdGVyfHJvb3R8MTc5MDh8aW1hZ2UvanBlZ3xhR0l5TDJnMlppOHhNRFl3TmpNd056YzNNRE01T0M5SlRrUlRUVU5XUVV4V1JWaGZWa1pUTkRJd01GOUdXbDh6TURCNE16QXdMbXB3Wnd8ZjY4N2FiNWIzMzkxYTA1NzA1MTcyNjg4MGRmMTJmOGY0MjkxZTE0NTlmOWU1OGVmMjM2ZDYzMjk2MmYyNTZjOA
17872817 Hydraulic and Pneumatic Valves

SMC SMC

VFS4400R-3FZ

Description

VFS4400R-3FZ

Solenoid Valve; 5 Port | 4 Way; 3 Position; 110-120/50-60 VAC; Pneumatic; Solenoid - Air Pilot - Spring | Solenoid - Air Pilot - Spring Return; 145 PSI; 14 To 140 Deg F; Metal Seal; Aluminum

Part #

VFS4400R-3FZ

BDI #
17872817

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0.71
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
Not Available
Number of Ports/Way
5 Port | 4 Way
Number of Positions
3 Position
Actuation
Solenoid - Air Pilot - Spring | Solenoid - Air Pilot - Spring Return
Voltage
110-120/50-60 VAC
Media
Pneumatic
Maximum Pressure
145 PSI
Operating Pressure Range
0 To 145 PSI
Operating Temperature Range
14 To 140 Deg F
Seal Type
Metal
Body Material
Aluminum
Inch - Metric
Inch
Other Features
2.8/3.1 Cv Factor | Air - Inert Gas Fluid | Base Mounted | Plug In | External Pilot | Conduit Terminal with Light/Surge Voltage Suppressor | Flush Non Locking Push Manual Override | In/Exhaust Center/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcpneumatics.com
Weight / LBS
1.76369
Long Description
Solenoid Valve; 5 Port | 4 Way; 3 Position; 110-120/50-60 VAC; Pneumatic; Solenoid - Air Pilot - Spring | Solenoid - Air Pilot - Spring Return; 145 PSI; 14 To 140 Deg F; Metal Seal; Aluminum
Overall Height
2.618 Inch | 66.5 Millimeter
Overall Width
1.713 Inch | 43.5 Millimeter
Overall Length
7.736 Inch | 196.5 Millimeter
