VQ7-6-FG-S-1B02 https://www.bdiexpress.com/medias/INDSMCVALVEX-25805979-300x300.jpg?context=bWFzdGVyfHJvb3R8OTA1NHxpbWFnZS9qcGVnfGFESXhMMmc1Wmk4eE1EazBPRFU1T1RRNE1ETTFNQzlKVGtSVFRVTldRVXhXUlZoZk1qVTRNRFU1TnpsZk16QXdlRE13TUM1cWNHY3wwMzY5ODgyYjdhZjAwZTkyODUxNzdlMzQyMWU5OThiMjhiYzVlNWRlNzFjMDY4M2ZhOTM1NTQ4ODliODVhNTNm
25805979 Hydraulic and Pneumatic Valves

SMC SMC

VQ7-6-FG-S-1B02

Description

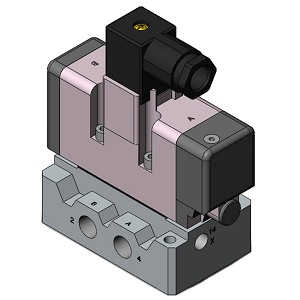

VQ7-6-FG-S-1B02, SOLENOID VALVE, ISO STANDARD (SMARTCATALOG)

Solenoid Valve; 1/4" RC; 5 Port | 4 Way; 2 Position; 100/50-60 VAC; Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; 145 PSI; 14 To 140 Deg F; Metal Seal

Part #

VQ7-6-FG-S-1B02

BDI #
25805979

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
1
Weight / Kilogram
0.77
Product Group - BDI
F02234
Valve Type
Solenoid
Port Type
1/4" RC
Number of Ports/Way
5 Port | 4 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
100/50-60 VAC
Media
Pneumatic
Maximum Pressure
145 PSI
Operating Pressure Range
22 To 145 PSI
Operating Temperature Range
14 To 140 Deg F
Seal Type
Metal
Inch - Metric
Inch
Other Features
0.9 - 1.1 Cv Factor | DIN terminal Block With Connector | Bottom Ported
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcworld.com
Weight / LBS
1.698
Long Description
Solenoid Valve; 1/4" RC; 5 Port | 4 Way; 2 Position; 100/50-60 VAC; Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; 145 PSI; 14 To 140 Deg F; Metal Seal
Overall Length
4.744 Inch | 120.5 Millimeter
Overall Width
2.441 Inch | 62 Millimeter
Overall Height
5.413 Inch | 137.5 Millimeter
