VQZ335-9L-03T(AC24V) https://www.bdiexpress.com/medias/INDSMCVALVEX-VQZ335-L-BSE-300x300.jpg?context=bWFzdGVyfHJvb3R8Njc3N3xpbWFnZS9qcGVnfGFESTNMMmhqWmk4eE1EYzNNREF5TXpjME16VXhPQzlKVGtSVFRVTldRVXhXUlZoZlZsRmFNek0xWDB4ZlFsTkZYek13TUhnek1EQXVhbkJufGFlYzhmNzY3OWY4MjQyY2JjZWZhZjVkY2QyOWNkMGM2NjVmYjY1M2Y2N2I0NzI1ODUyYzI0MTEyY2Y5Zjc3M2U
17879024 Hydraulic and Pneumatic Valves

SMC SMC

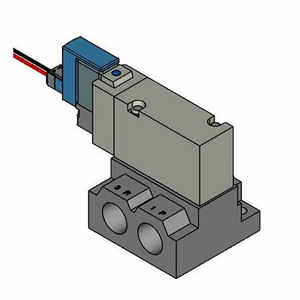

VQZ335-9L-03T(AC24V)

Description

VQZ335-9L-03T(AC24V)

Solenoid Valve; 3/8" FNPTF Port; 3 Port | 3 Way; 2 Position; 24 VAC; Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Aluminum

Part #

VQZ335-9L-03T(AC24V)

BDI #
17879024

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0.152
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
3/8" FNPTF
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
24 VAC
Media
Pneumatic
Maximum Pressure
102 PSI
Operating Pressure Range
22 To 102 PSI
Operating Temperature Range
14 To 122 Deg F
Seal Type
Rubber
Body Material
Aluminum
Inch - Metric
Inch
Other Features
1.3 - 1 Cv Factor | Base Ported | L Plug Connector With Light/Surge Voltage Suppressor | Non Locking Style
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcpneumatics.com
Weight / LBS
0.17196
Long Description
Solenoid Valve; 3/8" FNPTF Port; 3 Port | 3 Way; 2 Position; 24 VAC; Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Aluminum
Overall Height
2.224 Inch | 56.5 Millimeter
Overall Width
1.772 Inch | 45 Millimeter
Overall Length
3.484 Inch | 88.5 Millimeter
