VS7-8-FIG-D-9ZA04T(AC220V) https://www.bdiexpress.com/medias/INDSMCVALVEX-VS7-8-FHG-D-BSE-300x300.jpg?context=bWFzdGVyfHJvb3R8NTQ3OXxpbWFnZS9qcGVnfGFEVTVMMmhrWkM4eE1Ea3dPRE01TnpjMk5EWXpPQzlKVGtSVFRVTldRVXhXUlZoZlZsTTNYemhmUmtoSFgwUmZRbE5GWHpNd01IZ3pNREF1YW5CbnxlODkyN2U1M2UwOGY2MDhlZmYxZTczZDNhNzUwMTAwNTU1ODQyZWNkYjUyODY2NzU0ZTE2N2Y4YTBiMTE4ZGJl
Back to search results
18603008 Hydraulic and Pneumatic Valves

SMC SMC

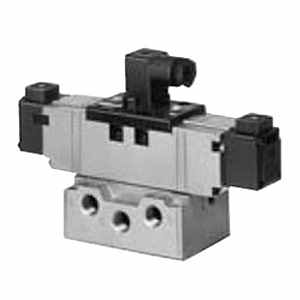

VS7-8-FIG-D-9ZA04T(AC220V)

Description

VS7-8-FIG-D-9ZA04T(AC220V) ; VS7-8 SOL VALVE 4/5 PORT

Solenoid Valve; 1/2" FNPTF Port; 5 Port | 4 Way; 3 Position; 220 VAC; Pneumatic; Solenoid - Air Pilot - Spring | Solenoid - Air Pilot - Spring Return; 145 PSI; 41 To 140 Deg F; Metal Seal

Part #

VS7-8-FIG-D-9ZA04T(AC220V)

BDI #
18603008

Details

Request A Price CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
1.571
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/2" FNPTF
Number of Ports/Way
5 Port | 4 Way
Number of Positions
3 Position
Actuation
Solenoid - Air Pilot - Spring | Solenoid - Air Pilot - Spring Return
Voltage
220 VAC
Media
Pneumatic
Maximum Pressure
145 PSI
Operating Pressure Range
15 To 145 PSI
Operating Temperature Range
41 To 140 Deg F
Seal Type
Metal
Inch - Metric
Inch
Other Features
Air - Inert Gas Fluid | Base Mounted | Side Ported | Indicator Light with Surge Voltage Suppressor | In/Pressure Center/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcpneumatics.com
Weight / LBS
3.46125
Long Description
Solenoid Valve; 1/2" FNPTF Port; 5 Port | 4 Way; 3 Position; 220 VAC; Pneumatic; Solenoid - Air Pilot - Spring | Solenoid - Air Pilot - Spring Return; 145 PSI; 41 To 140 Deg F; Metal Seal
Overall Height
6.102 Inch | 155 Millimeter
Overall Length
9.173 Inch | 233 Millimeter
Overall Width
2.953 Inch | 75 Millimeter
