VXP2270-12N-9C(AC24V) https://www.bdiexpress.com/medias/INDSMCVALVEX-VXP2390-20N-5C-300x300.jpg?context=bWFzdGVyfHJvb3R8NTM5MnxpbWFnZS9qcGVnfGFEZzVMMmhrTUM4eE1EYzNNRGsxTmpBeU5UZzROaTlKVGtSVFRVTldRVXhXUlZoZlZsaFFNak01TUY4eU1FNWZOVU5mTXpBd2VETXdNQzVxY0djfGVlNWI0ZDlmYzkzZDYyNWI3ZGM4MTcyNTljMTRiOWJkNzYwZTEzYWYzM2U0YTM5NmY2NWI1ZWJmYmU1YWQ4ZTg
Back to search results
17871583 Hydraulic and Pneumatic Valves

SMC SMC

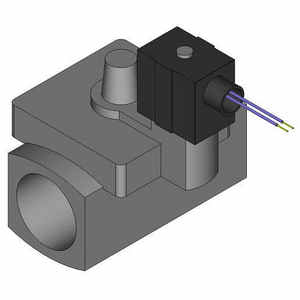

VXP2270-12N-9C(AC24V)

Description

VXP2270-12N-9C(AC24V) ; VALVE MEDIA

Solenoid Valve; 1-1/4" FNPT Port; 2 Port | 2 Way; 2 Position; 24 VAC; Hydraulic | Pneumatic; Solenoid - Air Pilot | Spring Return; Air - Water 145 PSI | Oil 102 PSI; Air -14 To 176 Deg F | Oil 23 To 140 Deg F | Water 34 To 140 Deg F; Buna-N Seal; Brass

Part #

VXP2270-12N-9C(AC24V)

BDI #
17871583

Details

572.86 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 572.86 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
3.156
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1-1/4" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Spring Return
Voltage
24 VAC
Media
Hydraulic | Pneumatic
Maximum Pressure
Air - Water 145 PSI | Oil 102 PSI
Operating Pressure Range
Air - Water 4.5 To 145 PSI | Oil 4.5 To 102 PSI
Operating Temperature Range
Air -14 To 176 Deg F | Oil 23 To 140 Deg F | Water 34 To 140 Deg F
Seal Type
Buna-N
Body Material
Brass
Inch - Metric
Inch
Other Features
23 Cv Factor | Body Size 32A | Conduit
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcpneumatics.com
Weight / LBS
7.2973
Long Description
Solenoid Valve; 1-1/4" FNPT Port; 2 Port | 2 Way; 2 Position; 24 VAC; Hydraulic | Pneumatic; Solenoid - Air Pilot | Spring Return; Air - Water 145 PSI | Oil 102 PSI; Air -14 To 176 Deg F | Oil 23 To 140 Deg F | Water 34 To 140 Deg F; Buna-N Seal; Brass
Overall Width
5.374 Inch | 136.5 Millimeter
Overall Height
5.039 Inch | 128 Millimeter
Overall Length
4.921 Inch | 125 Millimeter
