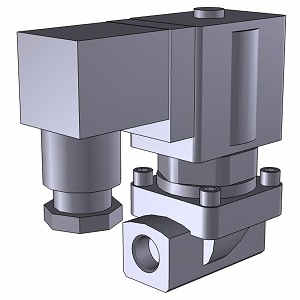

VXZ2230-02T-BDR1 https://www.bdiexpress.com/medias/INDSMCVALVEX-VXZ2-D-AC-WOB-300x300.jpg?context=bWFzdGVyfHJvb3R8NzkxMXxpbWFnZS9qcGVnfGFESm1MMmd6T0M4eE1Ea3dPVE0wTmpFd016TXlOaTlKVGtSVFRVTldRVXhXUlZoZlZsaGFNbDlFWDBGRFgxZFBRbDh6TURCNE16QXdMbXB3Wnd8MTZiMjgzODIxYWExYzA1YWQ0ZjZhMTUxMjg5MjQzMGRiZDJmOWQxZmNjMWExNDI3MjkzNDZjZGNkNGIwZmM4MQ
17894911 Hydraulic and Pneumatic Valves

SMC SMC

VXZ2230-02T-BDR1

Description

VXZ2230-02T-BDR1

Diaphragm Valve; 1/4" FNPTF Port; 2 Port | 2 Way; 2 Position; 24 VAC; Hydraulic | Pneumatic; Solenoid - Air Pilot | Spring Return; 145 PSI; Air -14 To 140 Deg F | Water 34 To 140 Deg F; Buna-N Seal; Brass

Part #

VXZ2230-02T-BDR1

BDI #
17894911

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0.656
Product Group - BDI
F02352
Valve Type
Diaphragm | Solenoid
Port Type
1/4" FNPTF
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Spring Return
Voltage
24 VAC
Media
Hydraulic | Pneumatic
Maximum Pressure
145 PSI
Operating Pressure Range
0 To 145 PSI
Operating Temperature Range
Air -14 To 140 Deg F | Water 34 To 140 Deg F
Seal Type
Buna-N
Body Material
Brass
Inch - Metric
Inch
Other Features
2.4 Cv Factor | 10MM Orifice Size | Air - Water Fluid | Zero Differential Pressure | Diaphragm | Normally Closed | DIN Terminal | Class B | In/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Diaphragm Solenoid
Manufacturer URL
https://www.smcpneumatics.com
Weight / LBS
1.27868
Long Description
Diaphragm Valve; 1/4" FNPTF Port; 2 Port | 2 Way; 2 Position; 24 VAC; Hydraulic | Pneumatic; Solenoid - Air Pilot | Spring Return; 145 PSI; Air -14 To 140 Deg F | Water 34 To 140 Deg F; Buna-N Seal; Brass
Overall Height
3.543 Inch | 90 Millimeter
Overall Length
3.583 Inch | 91 Millimeter
Overall Width
1.575 Inch | 40 Millimeter
