VXZ230BZ2KXB https://www.bdiexpress.com/medias/MFRSMCVALVEX-25764406-300x300.jpg?context=bWFzdGVyfHJvb3R8Njc2MHxpbWFnZS9qcGVnfGFEaGhMMmczT1M4eE1Ea3dPVEE0TURJeU16YzNOQzlOUmxKVFRVTldRVXhXUlZoZk1qVTNOalEwTURaZk16QXdlRE13TUM1cWNHY3xjMzA2M2I2MmNlZWQwZjJhMTYwMDgzZGYwNDg4OTlmZDkyMDI0YmVhMWI0ZmJlMjhhMDU0YmM2M2ZhOTE4MTJj
25764406 Hydraulic and Pneumatic Valves

SMC SMC

VXZ230BZ2KXB

Description

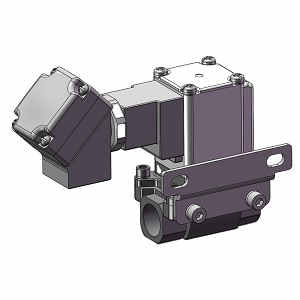

VXZ230BZ2KXB, PILOT OP 2 PORT SOLENOID VALVE, (N.C.) (SMARTCATALOG)

Solenoid Valve; 3/8" RC; 2 Port | 2 Way; 2 Position; 24 VDC; Pneumatic; Solenoid - Air Pilot | Spring Return; 102 PSI; 14 To 140 Deg F; Buna-N Seal; Aluminum

Part #

VXZ230BZ2KXB

BDI #
25764406

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
1
Weight / Kilogram
0.46
Product Group - BDI
F02234
Valve Type
Solenoid
Port Type
3/8" RC
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Spring Return
Voltage
24 VDC
Media
Pneumatic
Maximum Pressure
102 PSI
Operating Pressure Range
0 To 102 PSI
Operating Temperature Range
14 To 140 Deg F
Seal Type
Buna-N
Body Material
Aluminum
Inch - Metric
Inch
Other Features
2.6 Cv Factor | 10MM Orifice Size | Air Fluid | Zero Differential Pressure | Normally Closed | Conduit Terminal With Surge Voltage Suppressor | Class B | With Bracket | With Light
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcworld.com
Weight / LBS
1.014
Long Description
Solenoid Valve; 3/8" RC; 2 Port | 2 Way; 2 Position; 24 VDC; Pneumatic; Solenoid - Air Pilot | Spring Return; 102 PSI; 14 To 140 Deg F; Buna-N Seal; Aluminum
Overall Width
2.008 Inch | 51 Millimeter
Overall Height
3.937 Inch | 100 Millimeter
Overall Length
5.512 Inch | 140 Millimeter
