321304 Miter and Bevel Gears

BROWNING BROWNING

YSM8F32HX1

Description

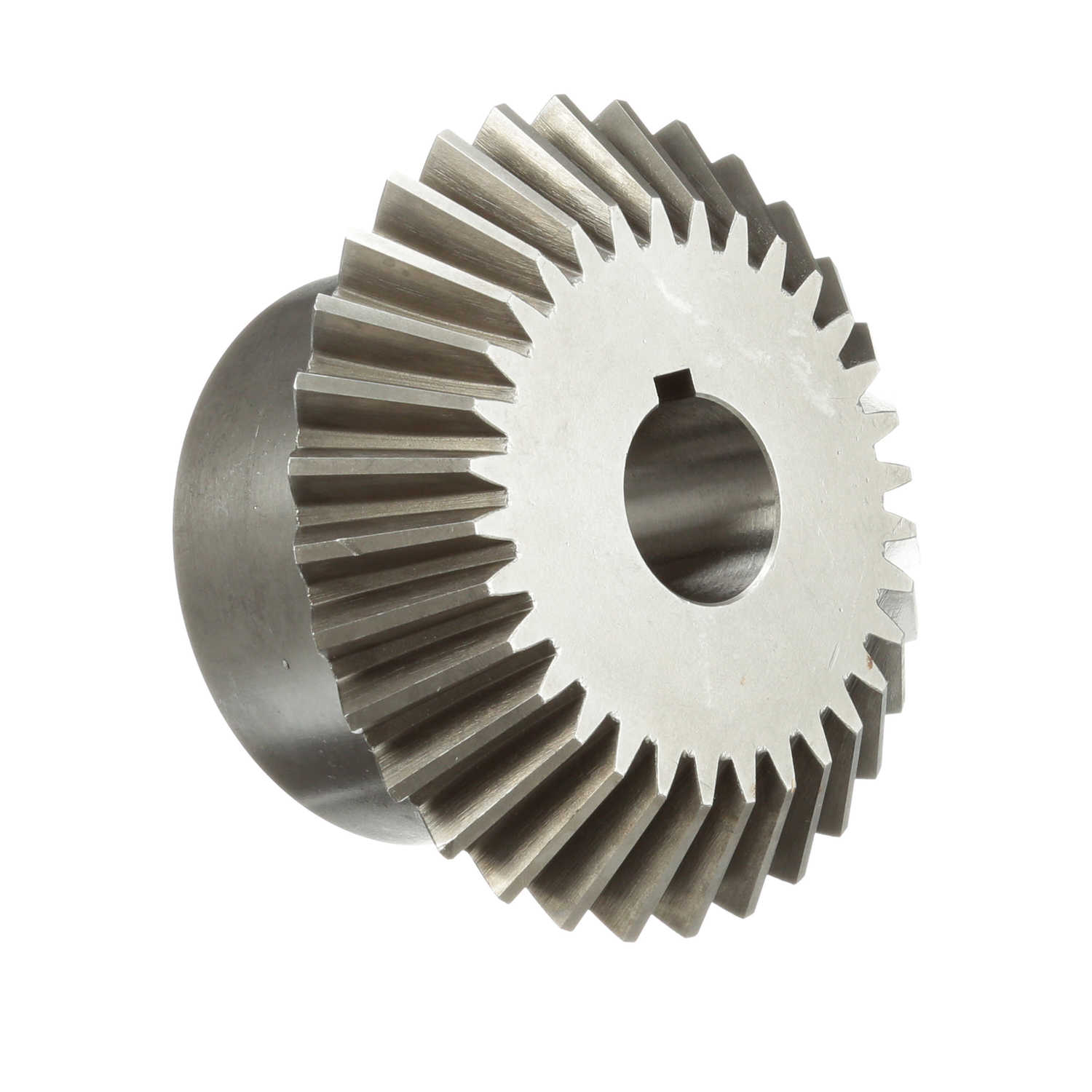

YSM8F32HX1 BEVEL/MITER GEAR ; POR NON-RETURNABLE 1" BORE 4" PITCH DIA

Miter Gear; 1" Bore; 4" Pitch Dia; 8 DP; 0.84" Face Width; Finished Bore; 32 Teeth; 20 Degree Pressure Angle; No Bushing; No Minimum Plain Bore; 3" Hub Dia; Straight Tooth; Steel

Part #

YSM8F32HX1

BDI #
321304

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Miter and Bevel Gears
Brand
BROWNING
Manufacturer Name
REGAL REXNORD https://www.regalrexnord.com
Minimum Buy Quantity
N/A
UNSPSC
31171708
Weight / Kilogram
1.833
EAN
0662289136544
Product Group - BDI
M02182
Pitch
8 DP
Mounting Method
Finished Bore
Number of Teeth
32
Pressure Angle
20 Degree
Bushing Size if bushed
No Bushing
Minimum Plain Bore
No
Max Bore
0
Gear Style
Miter Gear
Tooth Profile
Straight Tooth
Spiral Angle
Not Applicable
Material
Steel
Direction
Not Applicable
Hardened Teeth
Yes
Inch - Metric
Inch
Other Features
Hardened Overall | Coniflex Tooth Form | With Keyway and Set Screw
Manufacturer URL
https://www.regalrexnord.com
Manufacturer Internal Number
1228931
Long Description
Miter Gear; 1" Bore; 4" Pitch Dia; 8 DP; 0.84" Face Width; Finished Bore; 32 Teeth; 20 Degree Pressure Angle; No Bushing; No Minimum Plain Bore; 3" Hub Dia; Straight Tooth; Steel
Pitch Diameter
4 Inch | 101.6 Millimeter
Hub Diameter
3 Inch | 76.2 Millimeter
Bore
1 Inch | 25.4 Millimeter
Face Width
0.84 Inch | 21.336 Millimeter
