VM130-N01-08A https://www.bdiexpress.com/medias/INDSMCVALVEX-VM120-01-08-300x300.jpg?context=bWFzdGVyfHJvb3R8MjI3OTF8aW1hZ2UvanBlZ3xhR0l6TDJnMU9DOHhNRFl3TmpNeU5UWTJNVGN5Tmk5SlRrUlRUVU5XUVV4V1JWaGZWazB4TWpCZk1ERmZNRGhmTXpBd2VETXdNQzVxY0djfGViMTgwNmFlMmI5NmQ3ZjkzNjdiMjdkNmE0NzMyMjFkOTRiODJhZDc5OGU4YjU0MmM3ZjA1MWUxNzViMjFmYTg
17873988 Hydraulic and Pneumatic Valves

SMC SMC

VM130-N01-08A

Description

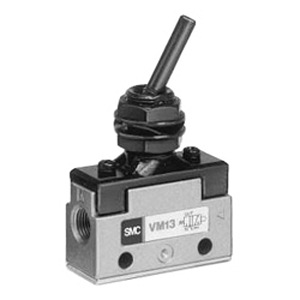

VM130-N01-08A DIRECTIONAL CONTROL VALVE ; 3 PORT 3 WAY/2 POSITION

Mechanical Valve; 1/8" FNPT Port; 3 Port | 3 Way; 2 Position; Pneumatic; Toggle Lever | Detent Return; 145 PSI; 23 To 140 Deg F; Zinc

Part #

VM130-N01-08A

BDI #
17873988

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

17.12 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 17.12 / each BDIExpress
QTY

Inventory

Total: 7

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141603
Weight / Kilogram
0.13
Product Group - BDI
F02352
Valve Type
Mechanical
Port Type
1/8" FNPT
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Toggle Lever | Detent Return
Voltage
Not Applicable
Media
Pneumatic
Maximum Pressure
145 PSI
Operating Pressure Range
-15 To 145 PSI
Operating Temperature Range
23 To 140 Deg F
Body Material
Zinc
Inch - Metric
Inch
Other Features
Long Side Ported
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.80
Noun
Valve
Keyword String
Mechanical
Manufacturer URL
https://www.smcpneumatics.com
Weight / LBS
0.2866
Long Description
Mechanical Valve; 1/8" FNPT Port; 3 Port | 3 Way; 2 Position; Pneumatic; Toggle Lever | Detent Return; 145 PSI; 23 To 140 Deg F; Zinc
Overall Height
2.657 Inch | 67.5 Millimeter
Overall Width
0.669 Inch | 17 Millimeter
Overall Length
1.732 Inch | 44 Millimeter
