VQZ2121-5L1-N7T https://www.bdiexpress.com/medias/INDSMCVALVEX-VQZ2120-L-N7-DC-300x300.jpg?context=bWFzdGVyfHJvb3R8NzIxNnxpbWFnZS9qcGVnfGFHVXpMMmhtWWk4eE1EYzJPVFF6TlRFNU56UTNNQzlKVGtSVFRVTldRVXhXUlZoZlZsRmFNakV5TUY5TVgwNDNYMFJEWHpNd01IZ3pNREF1YW5CbnwxMzA0ODE0YTk2YWZjYzY2OWZiMjM4MzQwMDI4YWUwNmQ5MTNiNjIwZGZhY2I3ZTdjNDcwODczYjE1ODBiN2Qz
18602320 Hydraulic and Pneumatic Valves

SMC SMC

VQZ2121-5L1-N7T

Description

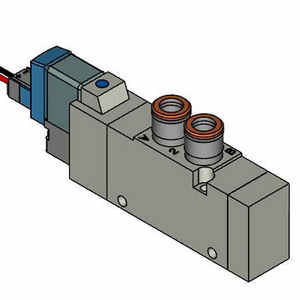

VQZ2121-5L1-N7T SOLENOID VALVE ; 5 PORT 4 WAY/2 POSITION 24VDC

Solenoid Valve; 1/4" Tubing OD Port; 5 Port | 4 Way; 2 Position; 24 VDC; Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Aluminum

Part #

VQZ2121-5L1-N7T

BDI #
18602320

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

50.01 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 50.01 / each BDIExpress
QTY

Inventory

Total: 6

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0.074
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/4" Tubing OD
Number of Ports/Way
5 Port | 4 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
24 VDC
Media
Pneumatic
Maximum Pressure
102 PSI
Operating Pressure Range
22 To 102 PSI
Operating Temperature Range
14 To 122 Deg F
Seal Type
Rubber
Body Material
Aluminum
Inch - Metric
Inch
Other Features
0.45 - 0.44 Cv Factor | Body Ported | L Plug Connector With Light/Surge Voltage Suppressor | Non Locking Style
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcpneumatics.com
Weight / LBS
0.1433
Long Description
Solenoid Valve; 1/4" Tubing OD Port; 5 Port | 4 Way; 2 Position; 24 VDC; Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Aluminum
Overall Width
0.591 Inch | 15 Millimeter
Overall Length
3.681 Inch | 93.5 Millimeter
Overall Height
1.524 Inch | 38.7 Millimeter
