54322-MP https://www.bdiexpress.com/medias/INDXXXBRGXXX-TB-RASSYPR-DR-BR-300x300.jpg?context=bWFzdGVyfHJvb3R8MjI4NTN8aW1hZ2UvanBlZ3xhR1psTDJneE5pOHhNRGN4TVRJMU56TTFNREUzTkM5SlRrUllXRmhDVWtkWVdGaGZWRUpmVWtGVFUxbFFVbDlFVWw5Q1VsOHpNREI0TXpBd0xtcHdad3w3OTQ5OTY4OTA1ZDNmMzAwNmEzYmU3ZTMzOTMyZjU5YzFjYWI4OTg2OGRhYjI5ODkwOGI4YWRlOTlhMDNkNmIx

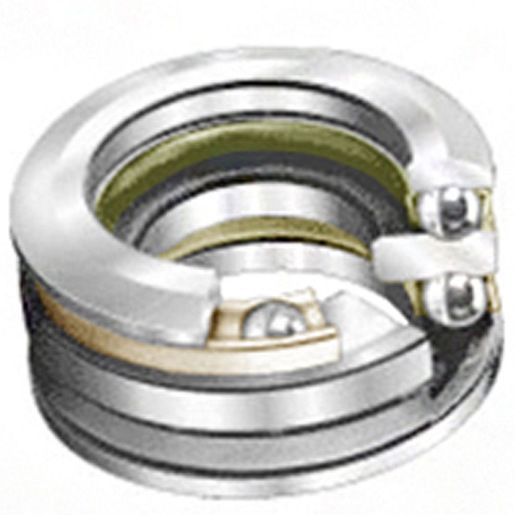

1146653 Thrust Ball Bearing

FAG FAG

54322-MP

Description

54322-MP THRUST BALL BEARING ; NON-RETURNABLE

Thrust Ball Bearing; 95MM Bore 1; 113MM Bore 2; 190MM Outer Diameter; 118.4MM Height; Double Direction; Not Banded; Brass Cage; ABEC 1 | ISO P0 Precision

Part #

54322-MP

BDI #
1146653

Details

4611.43 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 4,611.43 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Thrust Ball Bearing
Brand
FAG
Manufacturer Name
SCHAEFFLER GROUP
Minimum Buy Quantity
N/A
UNSPSC
31171552
Weight / Kilogram
13.808
EAN
4012801323871
Product Group - BDI
B00152
Rolling Element
Ball Bearing
Thrust Bearing
Yes
Single or Double Direction
Double Direction
Banded
No
Cage Material
Brass
Precision Class
ABEC 1 | ISO P0
Component Description
Roller Assembly Plus Raceways
Optional Components
Order U322 Seating Washer Separately
Other Features
Double Row | Deep Groove | Separable
Inch - Metric
Metric
Category - BDI
Thrust Ball Bearings
Harmonized Tariff Code
8482.10.50.08
Noun
Bearing
Keyword String
Ball Thrust
Manufacturer URL
https://www.schaeffler.us
Manufacturer Item Number
54322-MP
Manufacturer Internal Number
60407265
Weight / LBS
30.865
Long Description
Thrust Ball Bearing; 95MM Bore 1; 113MM Bore 2; 190MM Outer Diameter; 118.4MM Height; Double Direction; Not Banded; Brass Cage; ABEC 1 | ISO P0 Precision
Bore 1
3.74 Inch | 95 Millimeter
Outside Diameter
7.48 Inch | 190 Millimeter
Height
4.661 Inch | 118.4 Millimeter
Bore 2
4.449 Inch | 113 Millimeter
