UKF217D1 https://www.bdiexpress.com/medias/INDNTNFBXXXX-4B-SQ-UKF-CI-RL-300x300.jpg?context=bWFzdGVyfHJvb3R8MzI1MDJ8aW1hZ2UvanBlZ3xhRFl4TDJnd1l5OHhNRFF5TWpjNE9UUTNNakk0Tmk5SlRrUk9WRTVHUWxoWVdGaGZORUpmVTFGZlZVdEdYME5KWDFKTVh6TXdNSGd6TURBdWFuQm58ZjlhMzRmYTIxNjU5MjE3YjRjN2YxZWM2MmJhMDNjMjE3ZWE4YTVlMzYzNjFiYjc2MTM1MWEzMTY4ZDU2Y2E5MA
1235931 Flange Block Bearings

NTN NTN

UKF217D1

Description

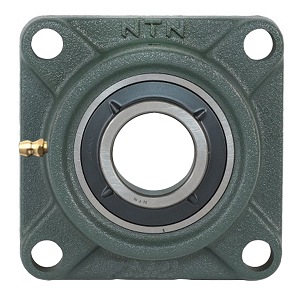

UKF217D1 FLANGED BLOCK BEARING

Flange Block Bearing; 4 Bolt Square Flange Block; 75MM Bore; 248MM Bolt Circle Diameter; 175MM Bolt Spacing; 1 Piece Solid; Tapered Adapter Sleeve; Cast Iron; Ball Bearing; Relubricatable; Single Lip Contact Seal

Part #

UKF217D1

BDI #
1235931

Details

503.6 CAD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 503.60 / each BDIExpress
QTY

Inventory

Total: 1

Category
Flange Block Bearings
Brand
NTN
Manufacturer Name
NTN-SNR https://www.ntnglobal.com/
Minimum Buy Quantity
N/A
UNSPSC
31171501
Weight / Kilogram
8.729
EAN
4547359002362
Product Group - BDI
M06110
Number of Mounting Holes
4
Mounting Method
Tapered Adapter Sleeve
Housing Style
4 Bolt Square Flange Block
Rolling Element
Ball Bearing
Housing Material
Cast Iron
Expansion / Non-expansion
Non-Expansion
Mounting Bolts
20 Millimeter
Relubricatable
Yes
Insert Part Number
UK217D1
Seals
Single Lip Contact
Housing Configuration
1 Piece Solid
Pilot Configuration
No Pilot
Inch - Metric
Metric
Other Features
Single Row | Normal Duty | Has Slinger
Category - BDI
Flange Block
Harmonized Tariff Code
8483.20.40.40
Noun
Bearing
Keyword String
Flanged
Manufacturer URL
https://www.ntnglobal.com
Weight / LBS
22
Long Description
Flange Block Bearing; 4 Bolt Square Flange Block; 75MM Bore; 248MM Bolt Circle Diameter; 175MM Bolt Spacing; 1 Piece Solid; Tapered Adapter Sleeve; Cast Iron; Ball Bearing; Relubricatable; Single Lip Contact Seal
Nominal Bolt Circle Diameter Round
9.8 Inch | 248 Millimeter
Bolt Spacing
6.89 Inch | 175 Millimeter
Bore
2.953 Inch | 75 Millimeter
Cartridge Pilot Diameter
0 Inch | 0 Millimeter
Length Thru Bore
3.228 Inch | 82 Millimeter
