10-VQ110L-6LO https://www.bdiexpress.com/medias/INDSMCVALVEX-VQ110-LO-300x300.jpg?context=bWFzdGVyfHJvb3R8MTg1ODR8aW1hZ2UvanBlZ3xhRFJqTDJoak9DOHhNRFl3TmpNM056VTJOakl6T0M5SlRrUlRUVU5XUVV4V1JWaGZWbEV4TVRCZlRFOWZNekF3ZURNd01DNXFjR2N8NzA4MWUzYzEwNjY5Mzc4MmE2ZThhMTBkZWFhYjU2NGJlZDIzYTIxMGE2NmI5ZDViMGFhZmQyNzM4ZmU2OTliZQ
17847862 Hydraulic and Pneumatic Valves

SMC SMC

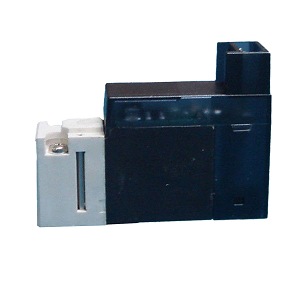

10-VQ110L-6LO

Description

10-VQ110L-6LO ; VALVECOMPACTLATCHINGC/ROOM

Poppet Valve; 3 Port | 3 Way; 2 Position; 12 VDC; Pneumatic; Solenoid Plunger | Spring Return; 102 PSI; 14 To 122 Deg F; Plastic

Part #

10-VQ110L-6LO

BDI #
17847862

Details

84.67 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 84.67 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0.025
Product Group - BDI
F02352
Valve Type
Poppet | Solenoid
Port Type
Not Available
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Solenoid Plunger | Spring Return
Voltage
12 VDC
Media
Pneumatic
Maximum Pressure
102 PSI
Operating Pressure Range
0 To 102 PSI
Operating Temperature Range
14 To 122 Deg F
Body Material
Plastic
Inch - Metric
Inch
Other Features
Without Sub Plate | Latching Positive Common | L Plug Connector Without Connector With Light and Surge Voltage Suppressor
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Poppet Solenoid
Manufacturer URL
https://www.smcpneumatics.com
Weight / LBS
0.02778
Long Description
Poppet Valve; 3 Port | 3 Way; 2 Position; 12 VDC; Pneumatic; Solenoid Plunger | Spring Return; 102 PSI; 14 To 122 Deg F; Plastic
Overall Height
1.012 Inch | 25.7 Millimeter
Overall Width
0.386 Inch | 9.8 Millimeter
Overall Length
1.276 Inch | 32.4 Millimeter
