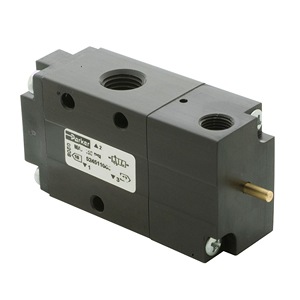

52451-1000 https://www.bdiexpress.com/medias/INDAACVALVEXX-52451-300x300.jpg?context=bWFzdGVyfHJvb3R8MTMwNDN8aW1hZ2UvanBlZ3xhR05pTDJobFpDODVOek00TmpVMk1qVXhPVE0wTG1wd1p3fGZiNGZhNWQyNmJkNTdjYmRjZThkZmUwYzVmNzA0NjkyZGI4YTQ3NWM0YjE4MzFiMzQ3MGQ1MGFlYmViYTMyNjg
18180824 Hydraulic and Pneumatic Valves

PARKER PARKER

52451-1000

Description

524511000 ; AIR VALVE

Spool Valve; 1/4" FNPT Port; 3 Port | 3 Way; 2 Position; Pneumatic; Air Pilot - Manual | Spring Return; 150 PSI; 32 To 175 Deg F; FKM Seal; Aluminum

Part #

524511000

BDI #
18180824

Details

Request A Price CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
PARKER
Manufacturer Name
PARKER
Minimum Buy Quantity
N/A
UNSPSC
40141608
Weight / Kilogram
0.453
Product Group - BDI
F02352
Valve Type
Spool
Port Type
1/4" FNPT
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Air Pilot - Manual | Spring Return
Voltage
Not Applicable
Media
Pneumatic
Maximum Pressure
150 PSI
Operating Pressure Range
20 To 150 PSI
Operating Temperature Range
32 To 175 Deg F
Seal Type
FKM
Body Material
Aluminum
Inch - Metric
Inch
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.80
Noun
Valve
Keyword String
Spool
Manufacturer URL
https://www.parker.com
Long Description
Spool Valve; 1/4" FNPT Port; 3 Port | 3 Way; 2 Position; Pneumatic; Air Pilot - Manual | Spring Return; 150 PSI; 32 To 175 Deg F; FKM Seal; Aluminum
Overall Length
3.858 Inch | 98 Millimeter
Overall Height
1.654 Inch | 42 Millimeter
Overall Width
1.063 Inch | 27 Millimeter
