NVS3145-0403D https://www.bdiexpress.com/medias/INDSMCVALVEX-NVS3145-300x300.jpg?context=bWFzdGVyfHJvb3R8MTI0NjZ8aW1hZ2UvanBlZ3xhR0UxTDJnNE9TODVOamMwT0Rjd01qVTVOelF5TG1wd1p3fDYyYTZkM2QyMDgxNTMxOWEwYjE1NjYxN2M3ZTEyMzcyZjRjMzk4MjRmYTBjYjJiZmZiMTc0YmRkYTM0ODFiZGY
17854178 Hydraulic and Pneumatic Valves

SMC SMC

NVS3145-0403D

Description

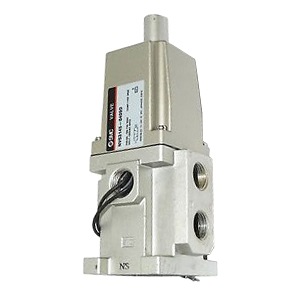

NVS3145-0403D ; VALVE SOL 110V/50HZ

Solenoid Valve; 1/2" FNPTF Port; 3 Port | 3 Way; 2 Position; 110/50 VAC; Pneumatic; Solenoid | Spring Return; 300 PSI; 32 To 115 Deg F; Metal Seal; Aluminum

Part #

NVS3145-0403D

BDI #
17854178

Details

Request A Price CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
1.281
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/2" FNPTF
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
110/50 VAC
Media
Pneumatic
Maximum Pressure
300 PSI
Operating Pressure Range
13.75 To 300 PSI
Operating Temperature Range
32 To 115 Deg F
Seal Type
Metal
Body Material
Aluminum
Inch - Metric
Inch
Other Features
4.17 Cv Factor | Air - Gas Fluid | Base Mounted | Recessed Non Locking Manual Operator | In/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcpneumatics.com
Weight / LBS
2.82191
Long Description
Solenoid Valve; 1/2" FNPTF Port; 3 Port | 3 Way; 2 Position; 110/50 VAC; Pneumatic; Solenoid | Spring Return; 300 PSI; 32 To 115 Deg F; Metal Seal; Aluminum
Overall Width
3.189 Inch | 81 Millimeter
Overall Length
3.228 Inch | 82 Millimeter
Overall Height
8.465 Inch | 215 Millimeter
