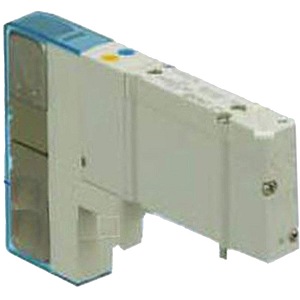

SY3201-5U1 https://www.bdiexpress.com/medias/INDSMCVALVEX-SY3100-300x300.jpg?context=bWFzdGVyfHJvb3R8MTQ5NDJ8aW1hZ2UvanBlZ3xhRGszTDJobE1pOHhNRGswTVRVd056TXdOVFV3TWk5SlRrUlRUVU5XUVV4V1JWaGZVMWt6TVRBd1h6TXdNSGd6TURBdWFuQm58YTZkNDdiMzE5MGQ1MGM5OTdlMjZjODIzMWViZmEzNzhmZjUyMTI2MzAyYzM3Y2JiZjllOTU5MDZiOTc3MDA3Mg
17865348 Hydraulic and Pneumatic Valves

SMC SMC

SY3201-5U1

Description

SY3201-5U1 ; VALVE SOL

Solenoid Valve; 5 Port | 4 Way; 2 Position; 24 VDC; Pneumatic; Solenoid - Air Pilot | Solenoid - Air Pilot - Detent Return; 102 PSI; 14 To 122 Deg F; Metal Seal; Zinc

Part #

SY3201-5U1

BDI #
17865348

Details

Request A Price CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0.094
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
Not Available
Number of Ports/Way
5 Port | 4 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Solenoid - Air Pilot - Detent Return
Voltage
24 VDC
Media
Pneumatic
Maximum Pressure
102 PSI
Operating Pressure Range
15 To 102 PSI
Operating Temperature Range
14 To 122 Deg F
Seal Type
Metal
Body Material
Zinc
Inch - Metric
Inch
Other Features
Air Fluid | Base Mounted | Without Sub Plate | Internal Pilot | Non Locking Type Manual Override | Non-Polar Light/Surge Voltage Suppressor | In/Out Position | Round Head Combination Screw
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcpneumatics.com
Weight / LBS
0.20767
Long Description
Solenoid Valve; 5 Port | 4 Way; 2 Position; 24 VDC; Pneumatic; Solenoid - Air Pilot | Solenoid - Air Pilot - Detent Return; 102 PSI; 14 To 122 Deg F; Metal Seal; Zinc
Overall Length
3.276 Inch | 83.2 Millimeter
Overall Width
0.496 Inch | 12.6 Millimeter
Overall Height
2.232 Inch | 56.7 Millimeter
