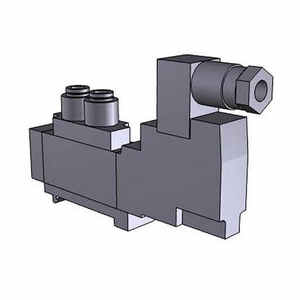

SY5160-BDZ-N7 https://www.bdiexpress.com/medias/INDSMCVALVEX-SY5160-D-C6-300x300.jpg?context=bWFzdGVyfHJvb3R8NTQ1MnxpbWFnZS9qcGVnfGFHSmxMMmd4Wmk4eE1EYzNNVEV4TlRZd05qQTBOaTlKVGtSVFRVTldRVXhXUlZoZlUxazFNVFl3WDBSZlF6WmZNekF3ZURNd01DNXFjR2N8NGEyMTc5Nzk1MGZlMTU3MGY3N2NhMWM1M2Y2MmI1YmRiMDlmMjc0YWNiZDMxMzMwMGI2MDlhNDI0MjkxMDIxYQ
18596542 Hydraulic and Pneumatic Valves

SMC SMC

SY5160-BDZ-N7

Description

SY5160-BDZ-N7 ; SY5000 SOL/VALVE, RUBBER SEAL

Solenoid Valve; 1/4" Tubing OD Port; 5 Port | 4 Way; 2 Position; 24 VAC; Pneumatic; Solenoid - Air Pilot | Air Pilot Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Aluminum

Part #

SY5160-BDZ-N7

BDI #
18596542

Details

137.82 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 137.82 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0.109
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/4" Tubing OD
Number of Ports/Way
5 Port | 4 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot Return
Voltage
24 VAC
Media
Pneumatic
Maximum Pressure
102 PSI
Operating Pressure Range
22 To 102 PSI
Operating Temperature Range
14 To 122 Deg F
Seal Type
Rubber
Body Material
Aluminum
Inch - Metric
Inch
Other Features
Air Fluid | Body Ported Cassette Type | Internal Pilot | Non Locking Type Manual Override | DIN Terminal with Connector | With Light/Surge Voltage Suppressor | One Touch Fitting | In/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcpneumatics.com
Weight / LBS
0.19002
Long Description
Solenoid Valve; 1/4" Tubing OD Port; 5 Port | 4 Way; 2 Position; 24 VAC; Pneumatic; Solenoid - Air Pilot | Air Pilot Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Aluminum
Overall Height
2.697 Inch | 68.5 Millimeter
Overall Length
4.524 Inch | 114.9 Millimeter
Overall Width
0.63 Inch | 16 Millimeter
