SYJ3543-5LZ-M5 https://www.bdiexpress.com/medias/INDSMCVALVEX-SYJ3340-BSE-L-300x300.jpg?context=bWFzdGVyfHJvb3R8MjM4NTB8aW1hZ2UvanBlZ3xhRGN3TDJnM1l5OHhNRFl3TmpFeE9EZzVOVFkwTmk5SlRrUlRUVU5XUVV4V1JWaGZVMWxLTXpNME1GOUNVMFZmVEY4ek1EQjRNekF3TG1wd1p3fGUzMjhhOWFlYzFlZDUzMzI0ZTkyNjZmOThkNzllNTEyYjI4N2I0ZjliOGQyZmE5NjhmMDY2OWNmNjIwNmM2Nzg
Back to search results
25789334 Hydraulic and Pneumatic Valves

SMC SMC

SYJ3543-5LZ-M5

Description

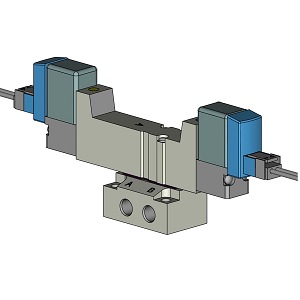

SYJ3543-5LZ-M5 SOLENOID VALVE

Valve; M5 Port; 5 Port - 4 Way; 3 Position; Pneumatic; 24 VDC; Solenoid - Air Pilot - Spring/Solenoid - Air Pilot - Spring Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Zinc

Part #

SYJ3543-5LZ-M5

BDI #
25789334

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0
Product Group - BDI
F02234
Valve Type
Solenoid
Port Type
M5
Number of Ports/Way
5 Port | 4 Way
Number of Positions
3 Position
Actuation
Solenoid - Air Pilot - Spring | Solenoid - Air Pilot - Spring Return
Voltage
24 VDC
Media
Pneumatic
Maximum Pressure
102 PSI
Operating Pressure Range
30 To 102 PSI
Operating Temperature Range
14 To 122 Deg F
Seal Type
Rubber
Body Material
Zinc
Inch - Metric
Metric
Other Features
0.16/0.11 Cv Factor | Air Fluid | Base Mounted | Common Pilot Exhaust | L Plug with 300MM Lead Wire | With Light/Surge Voltage Suppressor | Non Locking Push Type Manual Override | In/Pressure Center/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcworld.com
Weight / LBS
0.18519
Long Description
Valve; M5 Port; 5 Port - 4 Way; 3 Position; Pneumatic; 24 VDC; Solenoid - Air Pilot - Spring/Solenoid - Air Pilot - Spring Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Zinc
Overall Length
4.39 Inch | 111.5 Millimeter
Overall Height
1.634 Inch | 41.5 Millimeter
Overall Width
0.689 Inch | 17.5 Millimeter
