SYJ5543-5LZ-01 https://www.bdiexpress.com/medias/INDSMCVALVEX-SYJ5340-BSE-L-300x300.jpg?context=bWFzdGVyfHJvb3R8NjY0NnxpbWFnZS9qcGVnfGFHUmtMMmhqT1M4eE1EYzJPVFE1TnpjeE9EZ3hOQzlKVGtSVFRVTldRVXhXUlZoZlUxbEtOVE0wTUY5Q1UwVmZURjh6TURCNE16QXdMbXB3Wnd8ZmQ2OWE0NWExMzFjZTA2YWYzYjg1NzQ4OWJlZDllZmM3NWQzYjc0ODFhNmZkYjdkZDUwM2Q1MDI2NDJiMjM4NA
Back to search results
18598200 Hydraulic and Pneumatic Valves

SMC SMC

SYJ5543-5LZ-01

Description

SYJ5543-5LZ-01

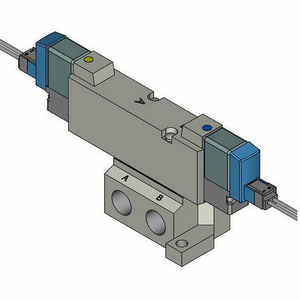

Solenoid Valve; 1/8" RC Port; 5 Port | 4 Way; 3 Position; 24 VDC; Pneumatic; Solenoid - Air Pilot - Spring | Solenoid - Air Pilot - Spring Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Aluminum

Part #

SYJ5543-5LZ-01

BDI #
18598200

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0.092
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/8" RC
Number of Ports/Way
5 Port | 4 Way
Number of Positions
3 Position
Actuation
Solenoid - Air Pilot - Spring | Solenoid - Air Pilot - Spring Return
Voltage
24 VDC
Media
Pneumatic
Maximum Pressure
102 PSI
Operating Pressure Range
22 To 102 PSI
Operating Temperature Range
14 To 122 Deg F
Seal Type
Rubber
Body Material
Aluminum
Inch - Metric
Inch
Other Features
0.24/0.18 Cv Factor | Air Fluid | Base Mounted | Common Pilot Exhaust | L Plug with 300MM Lead Wire | With Light/Surge Voltage Suppressor | Non Locking Push Type Manual Override | In/Pressure Center/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcpneumatics.com
Weight / LBS
0.20208
Long Description
Solenoid Valve; 1/8" RC Port; 5 Port | 4 Way; 3 Position; 24 VDC; Pneumatic; Solenoid - Air Pilot - Spring | Solenoid - Air Pilot - Spring Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Aluminum
Overall Width
1.26 Inch | 32 Millimeter
Overall Length
4.843 Inch | 123 Millimeter
Overall Height
1.972 Inch | 50.1 Millimeter
