VFN212N-5D-02F https://www.bdiexpress.com/medias/INDSMCVALVEX-VFN212-D-300x300.jpg?context=bWFzdGVyfHJvb3R8MjE4NTd8aW1hZ2UvanBlZ3xhRFJoTDJneE1DOHhNRFl3TmpJMU5qZzRNVFk1TkM5SlRrUlRUVU5XUVV4V1JWaGZWa1pPTWpFeVgwUmZNekF3ZURNd01DNXFjR2N8ZGNjOGRkM2JjMmU0YjQ2NjlhYjViZTkzZTIxNmUzMWNkNTc0OTI3MWQ3NmE5NWQxZDFlYTE3YTIwZDY4M2VkZA
17870752 Hydraulic and Pneumatic Valves

SMC SMC

VFN212N-5D-02F

Description

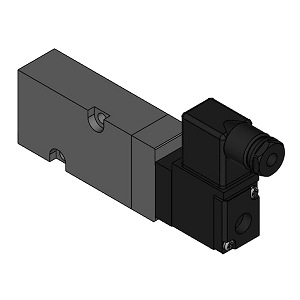

VFN212N-5D-02F ; VALVE NAMUR INTERFACE S/SOL

Solenoid Valve; 1/4" G Port; 3 Port | 3 Way; 2 Position; 24 VDC; Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; 130 PSI; 14 To 140 Deg F

Part #

VFN212N-5D-02F

BDI #
17870752

Details

146.83 CAD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 146.83 / each BDIExpress
QTY

Inventory

Total: 3

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0.709
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/4" G
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
24 VDC
Media
Pneumatic
Maximum Pressure
130 PSI
Operating Pressure Range
22 To 130 PSI
Operating Temperature Range
14 To 140 Deg F
Inch - Metric
Inch
Other Features
0.72/1.38 Cv Factor | Air - Inert Gas Fluid | NAMUR Interface | DIN Terminal with Connector | Flush Non Locking Push Type Manual Override | In/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcpneumatics.com
Weight / LBS
1.56111
Long Description
Solenoid Valve; 1/4" G Port; 3 Port | 3 Way; 2 Position; 24 VDC; Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; 130 PSI; 14 To 140 Deg F
Overall Height
2.618 Inch | 66.5 Millimeter
Overall Length
5.433 Inch | 138 Millimeter
Overall Width
0.906 Inch | 23 Millimeter
