VHS50-N06B-B-RZ https://www.bdiexpress.com/medias/INDSMCVALVEX-24551644-300x300.jpg?context=bWFzdGVyfHJvb3R8OTU1OHxpbWFnZS9qcGVnfGFEaGhMMmhsT0M4eE1EazFOelkwTkRRek1UTTVNQzlKVGtSVFRVTldRVXhXUlZoZk1qUTFOVEUyTkRSZk16QXdlRE13TUM1cWNHY3w0MjhlOTJhNzA3Y2UwODJlZDdjYzNlNjQ1NWFmMDE1NTkwMDc3YTk5MDQ3MzdkYjc2ZTEzNGRkMGQxNWJjZjA5
24551644 Hydraulic and Pneumatic Valves

SMC SMC

VHS50-N06B-B-RZ

Description

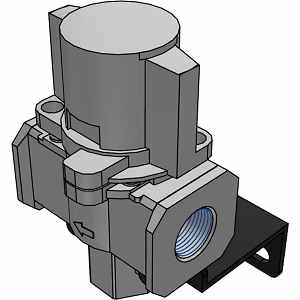

VHS50-N06B-B-RZ PRESSURE RELIEF VALVE ; 3-PORT

Relief Valve; 3/4" FNPT; 3 Port | 3 Way; 2 Position; Pneumatic; Spring - Detent | Manual Return; 145 PSI; 23 To 140 Deg F; HNBR Seal; Aluminum

Part #

VHS50-N06B-B-RZ

BDI #
24551644

Details

162.24 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 162.24 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141606
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Relief
Port Type
3/4" FNPT
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Spring - Detent | Manual Return
Voltage
Not Applicable
Media
Pneumatic
Maximum Pressure
145 PSI
Operating Pressure Range
15 To 145 PSI
Operating Temperature Range
23 To 140 Deg F
Seal Type
HNBR
Body Material
Aluminum
Inch - Metric
Inch
Other Features
6.4/5.9 Cv Factor | Air Fluid | With Locking Holes | White Body | With Bracket
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.40.00.00
Noun
Valve
Keyword String
Relief
Manufacturer URL
https://www.smcworld.com
Weight / LBS
1.389
Long Description
Relief Valve; 3/4" FNPT; 3 Port | 3 Way; 2 Position; Pneumatic; Spring - Detent | Manual Return; 145 PSI; 23 To 140 Deg F; HNBR Seal; Aluminum
Overall Width
2.992 Inch | 76 Millimeter
Overall Height
5.276 Inch | 134 Millimeter
Overall Length
3.543 Inch | 90 Millimeter
