VP542R-4G-03B-F https://www.bdiexpress.com/medias/INDSMCVALVEX-VP542-G-300x300.jpg?context=bWFzdGVyfHJvb3R8MjI4MDF8aW1hZ2UvanBlZ3xhREU1TDJnMU15OHhNRFl3TmpNMk1qUXlOelF5TWk5SlRrUlRUVU5XUVV4V1JWaGZWbEExTkRKZlIxOHpNREI0TXpBd0xtcHdad3xhOGMwZGQxYjgxMmQyNzc0OTIzYTE4ODc4ZWEzZDc4YmFkM2NmYmYwYWY0YmUxY2E1MGY4MzgzNTdjYjlhNGFl
18600676 Hydraulic and Pneumatic Valves

SMC SMC

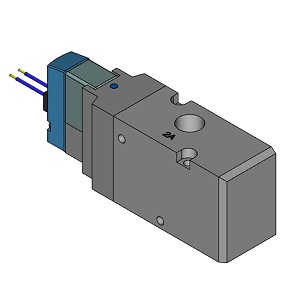

VP542R-4G-03B-F

Description

VP542R-4G-03B-F ; VP3/5/7 SOL VALVE 3-PORT

Poppet Valve; 3/8" RC Port; 3 Port | 3 Way; 2 Position; 220-230/50-60 VAC; Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Aluminum

Part #

VP542R-4G-03B-F

BDI #
18600676

Details

169.3 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 169.30 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0.37
Product Group - BDI
F02352
Valve Type
Poppet | Solenoid
Port Type
3/8" RC
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
220-230/50-60 VAC
Media
Pneumatic
Maximum Pressure
102 PSI
Operating Pressure Range
-15 To 102 PSI
Operating Temperature Range
14 To 122 Deg F
Seal Type
Rubber
Body Material
Aluminum
Inch - Metric
Inch
Other Features
2.2 - 2.1 Cv Factor | Body Ported | External Pilot | Standard | Grommet | Without Light and Surge Voltage Suppressor | Non Locking Push
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Poppet Solenoid
Manufacturer URL
https://www.smcpneumatics.com
Weight / LBS
0.814
Long Description
Poppet Valve; 3/8" RC Port; 3 Port | 3 Way; 2 Position; 220-230/50-60 VAC; Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Aluminum
Overall Length
5.169 Inch | 131.3 Millimeter
Overall Width
2.362 Inch | 60 Millimeter
Overall Height
1.772 Inch | 45 Millimeter
