VQZ342-5YZ1-C8 https://www.bdiexpress.com/medias/INDSMCVALVEX-VQZ332-1YZW1-C8-300x300.jpg?context=bWFzdGVyfHJvb3R8NTk1N3xpbWFnZS9qcGVnfGFHTTJMMmhsT1M4eE1EYzNNVEV6T1RFek16UTNNQzlKVGtSVFRVTldRVXhXUlZoZlZsRmFNek15WHpGWldsY3hYME00WHpNd01IZ3pNREF1YW5CbnwwZDBhZGIyMzBjNDM5MjNhY2UxY2EyODNlZmZiZWVlNDg2NGNiZmRlNDEzNzEwMWU4MWI1NWE0OTRkOTA0NGZk
21574333 Hydraulic and Pneumatic Valves

SMC SMC

VQZ342-5YZ1-C8

Description

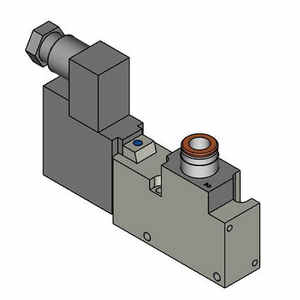

VQZ342-5YZ1-C8 SOLENOID VALVE

Solenoid Valve; 8 MM Tubing OD Port; 3 Port | 3 Way; 2 Position; 24 VDC; Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Aluminum

Part #

VQZ342-5YZ1-C8

BDI #
21574333

Details

121.32 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 121.32 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0.1
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
8 MM Tubing OD
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
24 VDC
Media
Pneumatic
Maximum Pressure
102 PSI
Operating Pressure Range
22 To 102 PSI
Operating Temperature Range
14 To 122 Deg F
Seal Type
Rubber
Body Material
Aluminum
Inch - Metric
Metric
Other Features
0.88 - 0.69 Cv Factor | Body Ported | DIN Terminal With Light/Surge Voltage Suppressor | Non Locking Style
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcpneumatics.com
Weight / LBS
0.20503
Long Description
Solenoid Valve; 8 MM Tubing OD Port; 3 Port | 3 Way; 2 Position; 24 VDC; Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Aluminum
Overall Width
0.709 Inch | 18 Millimeter
Overall Height
2.413 Inch | 61.3 Millimeter
Overall Length
4.083 Inch | 103.7 Millimeter
