VS7-6-FG-S-9NM(AC120V) https://www.bdiexpress.com/medias/INDSMCVALVEX-VS7-6-FGS-300x300.jpg?context=bWFzdGVyfHJvb3R8NjE4MnxpbWFnZS9qcGVnfGFETTBMMmhqWVM4eE1Ea3hNVFl3T0RRd05qQTBOaTlKVGtSVFRVTldRVXhXUlZoZlZsTTNYelpmUmtkVFh6TXdNSGd6TURBdWFuQm58YmNjOTFjNjY0MTBlMjMyYzdhNDQ5MjAyMjc3Nzc1NjU2NzkwMTc2NmU0OGRjOWUyZGM4NjgwMWU5MmE1YTgwYg
17879381 Hydraulic and Pneumatic Valves

SMC SMC

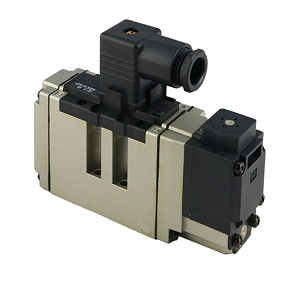

VS7-6-FG-S-9NM(AC120V)

Description

VS7-6-FG-S-9NM(AC120V) ; VALVE SOL ISO

Solenoid Valve; 5 Port | 4 Way; 2 Position; 120 VAC; Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; 145 PSI; 41 To 140 Deg F; Metal Seal

Part #

VS7-6-FG-S-9NM(AC120V)

BDI #
17879381

Details

204.01 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 204.01 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0.649
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
Not Available
Number of Ports/Way
5 Port | 4 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
120 VAC
Media
Pneumatic
Maximum Pressure
145 PSI
Operating Pressure Range
15 To 145 PSI
Operating Temperature Range
41 To 140 Deg F
Seal Type
Metal
Inch - Metric
Inch
Other Features
Air - Inert Gas Fluid | Base Mounted | Without Sub Plate | With Direct Manual Override | With Indicator Light | In/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcpneumatics.com
Weight / LBS
1.01413
Long Description
Solenoid Valve; 5 Port | 4 Way; 2 Position; 120 VAC; Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; 145 PSI; 41 To 140 Deg F; Metal Seal
Overall Height
4.921 Inch | 125 Millimeter
Overall Width
1.575 Inch | 40 Millimeter
Overall Length
5.354 Inch | 136 Millimeter
