VSA3135-03 https://www.bdiexpress.com/medias/INDSMCVALVEX-VSA-300x300.jpg?context=bWFzdGVyfHJvb3R8NzkxOXxpbWFnZS9qcGVnfGFEa3dMMmc0WXk4eE1EYzJOemswTWpBNU1EYzRNaTlKVGtSVFRVTldRVXhXUlZoZlZsTkJYek13TUhnek1EQXVhbkJufGFkZDg3OWMzZmVlZDFlNGNlZDMxYjI1YWUzOTczMjM1MGNiNDM4MDlmYWU2MzI2OTVjNzU2YzZjZWFhOWJjMGI
17879684 Hydraulic and Pneumatic Valves

SMC SMC

VSA3135-03

Description

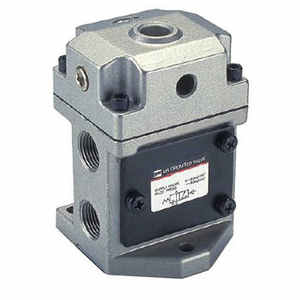

VSA3135-03 ; AIR OPERATED VALVE

Flow Control Valve; 3/8" FNPTF Port; 3 Port | 3 Way; 2 Position; Pneumatic; Spring | Air Pilot Return; 300 PSIAluminum

Part #

VSA3135-03

BDI #
17879684

Details

159.91 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 159.91 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141609
Weight / Kilogram
0.632
Product Group - BDI
F02352
Valve Type
Flow Control
Port Type
3/8" FNPTF
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Spring | Air Pilot Return
Voltage
Not Applicable
Media
Pneumatic
Maximum Pressure
300 PSI
Operating Pressure Range
13.75 To 300 PSI
Body Material
Aluminum
Inch - Metric
Inch
Other Features
2.58 Cv Factor | For Air
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.70
Noun
Valve
Keyword String
Flow Control
Manufacturer URL
https://www.smcpneumatics.com
Weight / LBS
1.39235
Long Description
Flow Control Valve; 3/8" FNPTF Port; 3 Port | 3 Way; 2 Position; Pneumatic; Spring | Air Pilot Return; 300 PSIAluminum
Overall Length
2.559 Inch | 65 Millimeter
Overall Width
2.52 Inch | 64 Millimeter
Overall Height
3.858 Inch | 98 Millimeter
