VX232ESGXNB https://www.bdiexpress.com/medias/INDSMCVALVEX-VX2-C-VX232DSCXNB-300x300.jpg?context=bWFzdGVyfHJvb3R8ODQxMnxpbWFnZS9qcGVnfGFHTTJMMmhrTWk4eE1Ea3hNREF6TkRjNE9ETTRNaTlKVGtSVFRVTldRVXhXUlZoZlZsZ3lYME5mVmxneU16SkVVME5ZVGtKZk16QXdlRE13TUM1cWNHY3w0NDI3YTdlNThhMTI5MDRjZjVlMmFlN2VkMjZiNzVjNmY1NmU5OTkyMDNhYWRhZmE5OTM3YTNlYzUzYWM0Y2Iw
25608453 Hydraulic and Pneumatic Valves

SMC SMC

VX232ESGXNB

Description

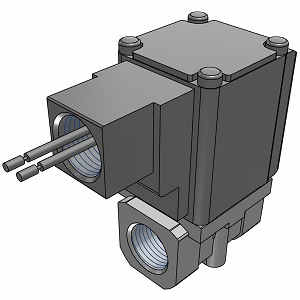

VX232ESGXNB 2 PORT VALVE (SMARTCATALOG)

Poppet Solenoid Valve; 3/8" NPT; 2 Port | 2 Way; 2 Position; 24 VDC; Hydraulic; Solenoid | Spring Return; 44 PSI; 34 To 140 Deg F; Viton Seal; Brass

Part #

VX232ESGXNB

BDI #
25608453

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
1
Weight / gram
590
Product Group - BDI
F02234
Valve Type
Poppet | Solenoid
Port Type
3/8" NPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
24 VDC
Media
Hydraulic
Maximum Pressure
44 PSI
Operating Pressure Range
0 To 44 PSI
Operating Temperature Range
34 To 140 Deg F
Seal Type
Viton
Body Material
Brass
Inch - Metric
Inch
Other Features
1.58 Cv Factor | 8MM Orifice Size | Water Fluid | Normally Closed | Class B | Conduit with Surge Voltage Suppressor | Size 3
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.20
Noun
Valve
Keyword String
Poppet Solenoid
Manufacturer URL
https://www.smcworld.com
Weight / LBS
1.301
Long Description
Poppet Solenoid Valve; 3/8" NPT; 2 Port | 2 Way; 2 Position; 24 VDC; Hydraulic; Solenoid | Spring Return; 44 PSI; 34 To 140 Deg F; Viton Seal; Brass
Overall Width
1.575 Inch | 40 Millimeter
Overall Length
3.031 Inch | 77 Millimeter
Overall Height
3.11 Inch | 79 Millimeter
