VX234CCB https://www.bdiexpress.com/medias/MFRSMCVALVEX-18197611-300x300.jpg?context=bWFzdGVyfHJvb3R8NjcwMnxpbWFnZS9qcGVnfGFHRXhMMmhpWmk4eE1Ea3hNREV5TnpZMU1qZzVOQzlOUmxKVFRVTldRVXhXUlZoZk1UZ3hPVGMyTVRGZk16QXdlRE13TUM1cWNHY3xhY2RiYmEwYTM1NjA3NGI2NGJhMTZkYzQ3NjBjNjczYjY4MDZlMzQ4NWNkZWNhYWFmMjk5MzZjZGJjZTA5MmE4
Back to search results
18197611 Hydraulic and Pneumatic Valves

SMC SMC

VX234CCB

Description

VX234CCB

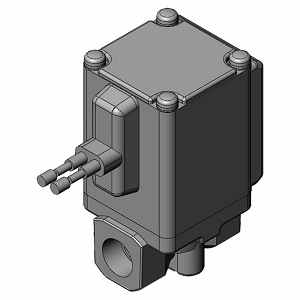

Poppet Solenoid Valve; 1/4" NPT; 2 Port | 2 Way; 2 Position; 110/50-60 VAC; Pneumatic; Solenoid | Spring Return; 101.325 KPa; 34 To 140 Deg F; Viton Seal; Brass

Part #

VX234CCB

BDI #
18197611

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141600
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Poppet | Solenoid
Port Type
1/4" NPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
110/50-60 VAC
Media
Pneumatic
Maximum Pressure
101.325 KPa
Operating Pressure Range
0.1 Pa-abs To 101.325 KPa
Operating Temperature Range
34 To 140 Deg F
Seal Type
Viton
Body Material
Brass
Inch - Metric
Inch
Other Features
2.21 Cv Factor | 10MM Orifice Size | Medium Vacuum Fluid | Normally Closed | Class B | Grommet with Surge Voltage Suppressor | Size 3
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Poppet Solenoid
Manufacturer URL
https://www.smcworld.com
Weight / LBS
1.279
Long Description
Poppet Solenoid Valve; 1/4" NPT; 2 Port | 2 Way; 2 Position; 110/50-60 VAC; Pneumatic; Solenoid | Spring Return; 101.325 KPa; 34 To 140 Deg F; Viton Seal; Brass
Overall Height
3.11 Inch | 79 Millimeter
Overall Length
2.343 Inch | 59.5 Millimeter
Overall Width
1.575 Inch | 40 Millimeter
