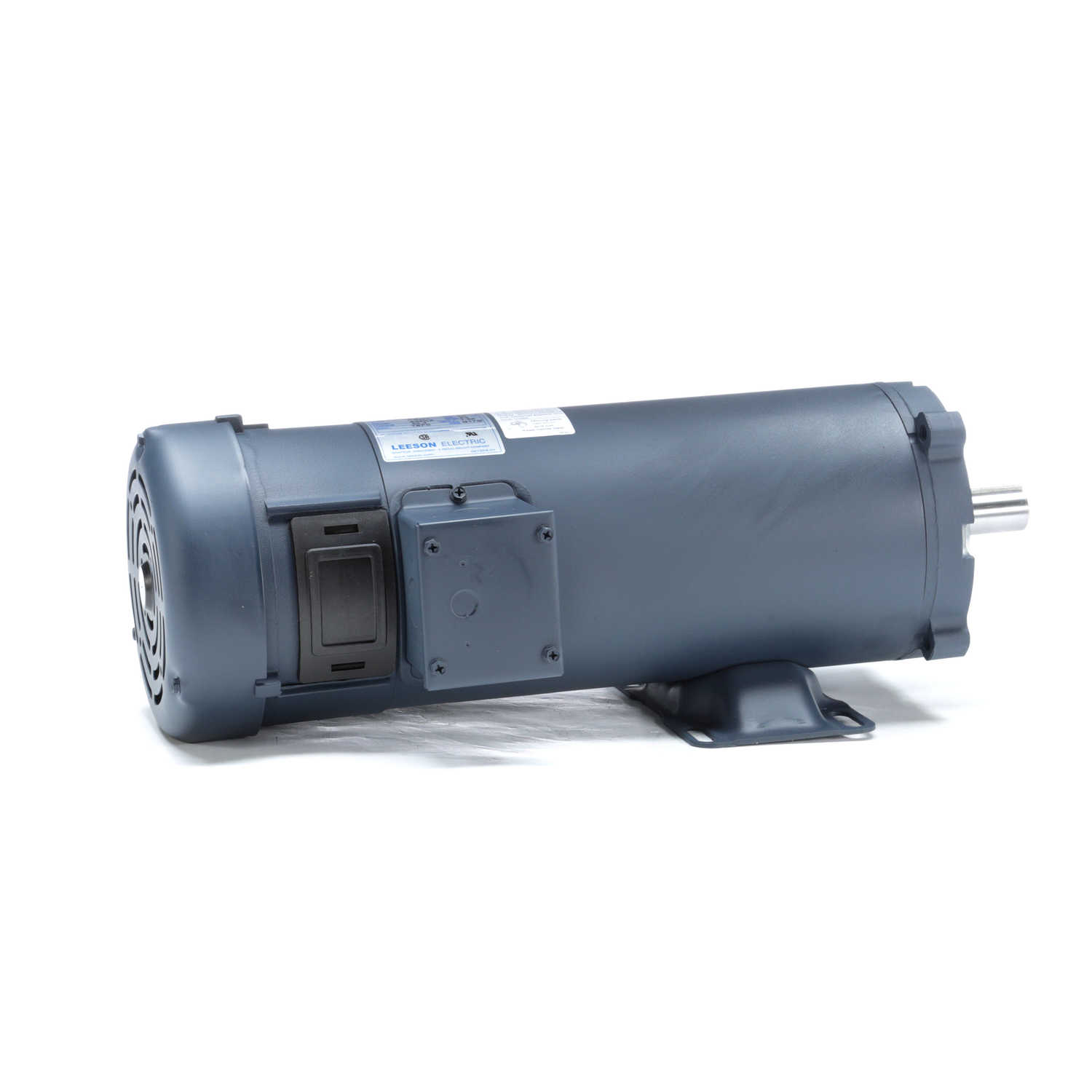

554294 Permanent Magnet DC Motors

LEESON LEESON

108266.00

Description

108266.00 SCR DC MOTOR ; 2HP 2500RPM S56CZ TEFC 180V

DC Motor; Permanent Magnet; 2HP; S56CZ Frame Size; 2500 Sync RPM; 180 Voltage; DC; TEFC Enclosure; NEMA Frame Profile; C-Face | Rigid; Base; 7/8" Shaft Diameter; 3-1/2" Base to Center Height; 17.89" Overall Length; 88.1 Efficiency Full Load

Part #

108266.00

BDI #
554294

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Permanent Magnet DC Motors
Brand
LEESON
Manufacturer Name
REGAL REXNORD https://www.regalrexnord.com
Minimum Buy Quantity
N/A
UNSPSC
26101208
Weight / Kilogram
24.49
EAN
0691720006887
Product Group - BDI
M04104
Horse Power
2HP
Frame Size
S56CZ
Sync RPM
2500
Voltage
180
Current
DC
Enclosure
TEFC
Frame Profile
NEMA
Mounting Method
C-Face | Rigid
Base
Yes
Efficiency Full Load
88.1
Inch - Metric
Inch
Other Features
Current Rating 8.6 Ampere | SCR Drive
Category - BDI
Permanent Magnet DC Motors
Harmonized Tariff Code
8501.33.40.60
Noun
Motor
Keyword String
Direct Current Permanent Magnet
Manufacturer URL
https://www.regalrexnord.com
Weight / LBS
54
Long Description
DC Motor; Permanent Magnet; 2HP; S56CZ Frame Size; 2500 Sync RPM; 180 Voltage; DC; TEFC Enclosure; NEMA Frame Profile; C-Face | Rigid; Base; 7/8" Shaft Diameter; 3-1/2" Base to Center Height; 17.89" Overall Length; 88.1 Efficiency Full Load
Overall Length
17.89 Inch | 454.406 Millimeter
Base to Center Height
3.5 Inch | 88.9 Millimeter
Shaft Diameter
0.875 Inch | 22.225 Millimeter
