Back to search results

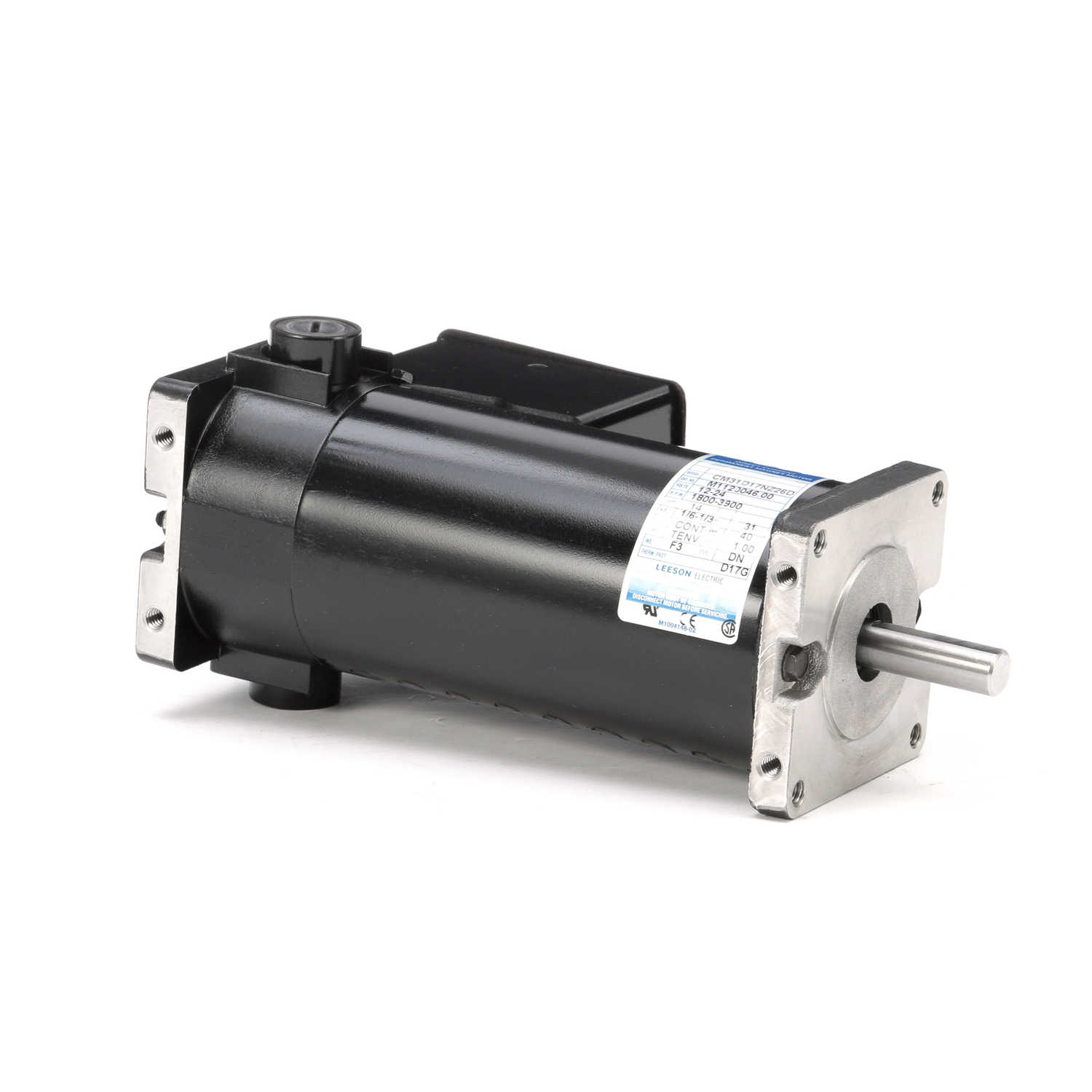

20180681 Low Voltage DC Motors

LEESON LEESON

M1120046.00

Description

M1120046.00 GENERAL PURPOSE AC MOTOR ; MOQ:50 1/6HP-1/3HP 1800-3900RPM 31 TENV

DC Motor; Permanent Magnet; 1/6 | 1/3HP; 31 Frame Size; 4000/1800 Sync RPM; 12 | 24 Voltage; DC; TENV Enclosure; NEMA Frame Profile; Square Face; No Base; 1/2" Shaft Diameter; 9.45" Overall Length; 72.8 Efficiency Full Load

Part #

M1120046.00

BDI #
20180681

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Low Voltage DC Motors
Brand
LEESON
Manufacturer Name
REGAL REXNORD https://www.regalrexnord.com
Minimum Buy Quantity
N/A
UNSPSC
26101208
Weight / Kilogram
4.08
EAN
0691720090848
Product Group - BDI
M04104
Horse Power
1/6 | 1/3HP
Frame Size
31
Sync RPM
4000/1800
Voltage
12 | 24
Current
DC
Enclosure
TENV
Frame Profile
NEMA
Mounting Method
Square Face
Base
No
Efficiency Full Load
72.8
Inch - Metric
Inch
Other Features
Current Rating 14 Ampere | Low Voltage
Category - BDI
Low Voltage DC Motors
Harmonized Tariff Code
8501.33.40.60
Noun
Motor
Keyword String
Direct Current Permanent Magnet
Manufacturer URL
https://www.regalrexnord.com
Weight / LBS
9
Long Description
DC Motor; Permanent Magnet; 1/6 | 1/3HP; 31 Frame Size; 4000/1800 Sync RPM; 12 | 24 Voltage; DC; TENV Enclosure; NEMA Frame Profile; Square Face; No Base; 1/2" Shaft Diameter; 9.45" Overall Length; 72.8 Efficiency Full Load
Overall Length
9.45 Inch | 240.03 Millimeter
Shaft Diameter
0.5 Inch | 12.7 Millimeter
