GLE20-XL-KRR-B https://www.bdiexpress.com/medias/INDFAGINSERT-BAL-GE-DS-300x300.jpg?context=bWFzdGVyfHJvb3R8MjMxMjN8aW1hZ2UvanBlZ3xhRFZsTDJnM1lTOHhNRFV5TURBd05qWTRPRGM1T0M5SlRrUkdRVWRKVGxORlVsUmZRa0ZNWDBkRlgwUlRYek13TUhnek1EQXVhbkJufGE2YWE1NWVmZmFmNDg1NjFjNDAzMzZkODk2ZDA2ZTEwNTM5ODNhZDA5Y2Y5MGMwMmNkOGM5MzRkZGRkNTNjYzk
Back to search results
1180624 Insert Bearings Spherical OD

INA INA

GLE20-XL-KRR-B

Description

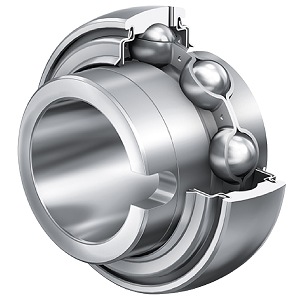

GLE20-XL-KRR-B X-LIFE RDL INSRT BALL BRG ; POR NON RETURNABLE 20MM ID X 47MM OD

Insert Bearing; 20MM Bore; 34.1MM Length Thru Bore; Wide Inner Ring; 14MM Outer Race Width; Spherical; 47MM Outside Diameter; Relubricatable; Contact Seal; Drive Slot Mounting Method; No Snap Ring; Ball Bearing Rolling Element

Part #

GLE20-XL-KRR-B

BDI #
1180624

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Insert Bearings Spherical OD
Brand
INA
Manufacturer Name
SCHAEFFLER GROUP
Minimum Buy Quantity
N/A
UNSPSC
31171500
Weight / Kilogram
0.15
EAN
4012802799651
Product Group - BDI
M06110
Inner Race Profile
Wide Inner Ring
Outer Race Profile
Spherical
Relubricatable
Yes
Seal Type
Contact
Mounting Method
Drive Slot
Rolling Element
Ball Bearing
Snap Ring
No
Inch - Metric
Metric
Other Features
Single Row
Category - BDI
Insert Bearings
Harmonized Tariff Code
8483.20.40.40
Noun
Bearing
Keyword String
Insert
Manufacturer URL
https://www.schaeffler.com
Weight / LBS
0.33069
Long Description
Insert Bearing; 20MM Bore; 34.1MM Length Thru Bore; Wide Inner Ring; 14MM Outer Race Width; Spherical; 47MM Outside Diameter; Relubricatable; Contact Seal; Drive Slot Mounting Method; No Snap Ring; Ball Bearing Rolling Element
Outer Race Width
0.551 Inch | 14 Millimeter
Length Thru Bore
1.343 Inch | 34.1 Millimeter
Outside Diameter
1.85 Inch | 47 Millimeter
Bore
0.787 Inch | 20 Millimeter
