VXV3340-03N-3DLR1 https://www.bdiexpress.com/medias/INDSMCVALVEX-VXV3130-D-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8Njg5MHxpbWFnZS9qcGVnfGFEa3lMMmd6WVM4eE1EYzJPRFk0TWpBNU1EVXlOaTlKVGtSVFRVTldRVXhXUlZoZlZsaFdNekV6TUY5RVgwSlNVMTh6TURCNE16QXdMbXB3Wnd8ODY1NzgzNDgxMTI3ODEyOTYyNWZkMTJlMzk5NGI3MGViYzJjY2VjMzBiYTlhMmNlMDM1ZjNiNjRmMDYxM2VkNA
25644198 Hydraulic and Pneumatic Valves

SMC SMC

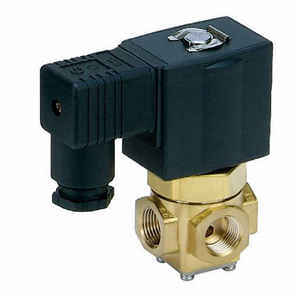

VXV3340-03N-3DLR1

Description

VXV3340-03N-3DLR1, DIRECT OP 3 PORT SOLENOID VALVE, N.C. (SMARTCATALOG)

Valve; 3/8" FNPT Port; 3 Port - 3 Way; 2 Position; Pneumatic; 110/50-60 VAC; Solenoid/Spring Return; 130 PSI; 14 To 140 Deg F; Buna-N Seal; Brass

Part #

VXV3340-03N-3DLR1

BDI #
25644198

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Request a quotation

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
1
Weight / gram
840
Product Group - BDI
F02234
Valve Type
Solenoid
Port Type
3/8" FNPT
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
110/50-60 VAC
Media
Pneumatic
Maximum Pressure
130 PSI
Operating Pressure Range
Low Vacuum To 130 PSI
Operating Temperature Range
14 To 140 Deg F
Seal Type
Buna-N
Body Material
Brass
Inch - Metric
Inch
Other Features
Vacuum Pad | Built-in Full Wave Rectifier | DIN Terminal with Connector | With Indicator Light | In/Out Position | -20 To 40 Deg C Ambient Temperature
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcworld.com
Weight / LBS
1.76369
Long Description
Valve; 3/8" FNPT Port; 3 Port - 3 Way; 2 Position; Pneumatic; 110/50-60 VAC; Solenoid/Spring Return; 130 PSI; 14 To 140 Deg F; Buna-N Seal; Brass
Overall Height
3.858 Inch | 98 Millimeter
Overall Width
1.614 Inch | 41 Millimeter
Overall Length
3.78 Inch | 96 Millimeter
