826021 https://www.bdiexpress.com/medias/INDHORCLUBRK-PNEU-BCB-SHFT-SHVE-300x300.jpg?context=bWFzdGVyfHJvb3R8NzMxOHxpbWFnZS9qcGVnfGFEVm1MMmcwWlM4eE1EYzJPREkxT0RRNU9EVTVNQzlKVGtSSVQxSkRURlZDVWt0ZlVFNUZWVjlDUTBKZlUwaEdWRjlUU0ZaRlh6TXdNSGd6TURBdWFuQm58ZTgzNjZjOTY3YTgzMWQ4ZmFhNWQxMzYwYzllZjMxYzE0OGM4NTQ1ZjE1ZDRkOGEyNTI1NzAwOTIyZmMwOTRlZA
Back to search results
457013 Pneumatic Clutches and Brakes

NEXEN NEXEN

826021

Description

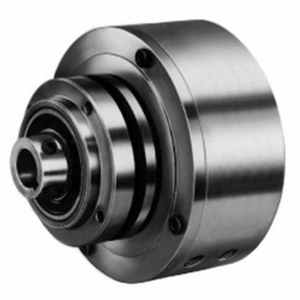

826021 SHAFT MOUNTED CLUTCH BRAKE

Clutch and Brake; Pneumatic Activation; Straight | Finished Bore; 5/8" Bore; Hollow Bore Input; Hollow Bore Output; Shaft Mount; Maximum Static Torque C

Part #

826021

BDI #
457013

Details

1625.42 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 1,625.42 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Pneumatic Clutches and Brakes
Brand
NEXEN
Manufacturer Name
NEXEN GROUP INC WWW.NEXENGROUP.COM
Minimum Buy Quantity
N/A
UNSPSC
26112104
Weight / Kilogram
2.781
EAN
0662284203159
Product Group - BDI
C02104
Product Name
Clutch and Brake
Activation
Pneumatic
Bore Profile
Straight | Finished
Input Type
Hollow Bore
Output Type
Hollow Bore
Mounting Method
Shaft
Torque
Maximum Static Torque Clutch-80Lb-in | Brake-80Lb-in
Product Type
Friction Facing | Drive Disc
Actuation/Return
Air | Air
Tradename
AIR CHAMP
Product Series
BCB
Housing Style
Cylindrical
Shaft-Thru/End
Thru
Drive Arrangement
Sheave Mount
Maximum RPM
3600
Pressure
80psi
Thermal Capacity
Clutch-0.13HP | Brake-0.13HP
Application
Small Conveyors | Sheet Feed Systems
Inch - Metric
Inch
Other Features
Standard Coefficient Clutch Facing | Standard Coefficient Brake Facing | Black Oxide Finish | Open Design | Single Piston
Category - BDI
Clutches and Brakes
Noun
Assembly
Keyword String
Braking Clutch
Manufacturer URL
http://www.nexengroup.com
Manufacturer Item Number
826021
Weight / LBS
6.13
Long Description
Clutch and Brake; Pneumatic Activation; Straight | Finished Bore; 5/8" Bore; Hollow Bore Input; Hollow Bore Output; Shaft Mount; Maximum Static Torque C
Bore
0.625 Inch | 15.875 Millimeter
Port Size
0.125 Inch | 3.175 Millimeter
Pilot Diameter
0 Inch | 0 Millimeter
