06F22C2140AAF4C15 https://www.bdiexpress.com/medias/INDAACVALVEXX-06F22C2-300x300.jpg?context=bWFzdGVyfHJvb3R8MTg2NTB8aW1hZ2UvanBlZ3xhREZtTDJnNU5TODVOek00TmpVMU5UazJOVGMwTG1wd1p3fDk1MzFlMjU0NjJhMDIxZGRlZWQ4ZGRlZTM0MzJlYzZkYTZhZDYzY2M1YzAwMWNhNzg1NTI5MzQ1YTJmMjExZWU
1477002 Hydraulic and Pneumatic Valves

PARKER PARKER

06F22C2140AAF4C15

Description

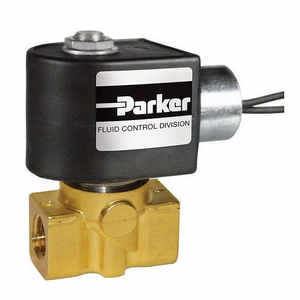

06F22C2140AAF4C15 SOLENOID VALVE ; POR

Flow Control Valve; 3/8" FNPT Port; 2 Port | 2 Way; 2 Position; 220/50 VAC | 240/60 VAC; Hydraulic | Pneumatic; Solenoid - Air Pilot; 200 PSI; 0 To 180 Deg F; NBR Seal; Brass

Part #

06F22C2140AAF4C15

BDI #
1477002

Details

2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price Request A Price BDIExpress
QTY

Inventory

Total: 2

Category
Hydraulic and Pneumatic Valves
Brand
PARKER
Manufacturer Name
PARKER
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Flow Control | Solenoid
Port Type
3/8" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot
Voltage
220/50 VAC | 240/60 VAC
Media
Hydraulic | Pneumatic
Maximum Pressure
200 PSI
Operating Pressure Range
5 To 200 PSI
Operating Temperature Range
0 To 180 Deg F
Seal Type
NBR
Body Material
Brass
Inch - Metric
Inch
Other Features
1/2" NPT Conduit | 18" Leads
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.80
Noun
Valve
Keyword String
Flow Control Solenoid
Manufacturer URL
https://www.parker.com
Long Description
Flow Control Valve; 3/8" FNPT Port; 2 Port | 2 Way; 2 Position; 220/50 VAC | 240/60 VAC; Hydraulic | Pneumatic; Solenoid - Air Pilot; 200 PSI; 0 To 180 Deg F; NBR Seal; Brass
