1401885 Hydraulic and Pneumatic Valves

AVENTICS AVENTICS

0820402011

Description

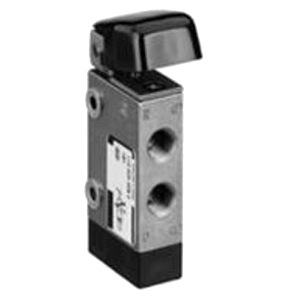

0820402011 DIRECTIONAL VALVE ; POR 3/2

Flow Control Valve; 1/8" G Port; 3 Port | 3 Way; 2 Position; Pneumatic; Push Button | Air Return; 145 PSI; 5 To 176 Deg F; Stainless Steel

Part #

0820402011

BDI #
1401885

Details

2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price Request A Price BDIExpress
QTY

Inventory

Total: 4

Category
Hydraulic and Pneumatic Valves
Brand
AVENTICS
Manufacturer Name
EMERSON
Minimum Buy Quantity
N/A
UNSPSC
40141609
Weight / Kilogram
0.18
Product Group - BDI
F02352
Valve Type
Flow Control
Port Type
1/8" G
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Push Button | Air Return
Voltage
Not Applicable
Media
Pneumatic
Maximum Pressure
145 PSI
Operating Pressure Range
-14 To 145 PSI
Operating Temperature Range
5 To 176 Deg F
Body Material
Stainless Steel
Inch - Metric
Inch
Other Features
Non-Locking
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.80
Noun
Valve
Keyword String
Flow Control
Manufacturer URL
https://www.aventics.com
Weight / LBS
0.39683
Long Description
Flow Control Valve; 1/8" G Port; 3 Port | 3 Way; 2 Position; Pneumatic; Push Button | Air Return; 145 PSI; 5 To 176 Deg F; Stainless Steel
Overall Height
3.248 Inch | 82.5 Millimeter
Overall Length
1.575 Inch | 40 Millimeter
Overall Width
0.945 Inch | 24 Millimeter
