7051021200 https://www.bdiexpress.com/medias/INDMTWVALVEX-7051021200-300x300.jpg?context=bWFzdGVyfHJvb3R8NDY5MHxpbWFnZS9qcGVnfGFEZGxMMmcyTmk4eE1EazBPRGs1TURreU5qZzNPQzlKVGtSTlZGZFdRVXhXUlZoZk56QTFNVEF5TVRJd01GOHpNREI0TXpBd0xtcHdad3w0MjA0NWU4ZmQyYTMwNDZhN2YwYTg2ODNlM2MyZjk0YzE3YmM2ZmYzNzc5MmY4NzdiZGJlMTk1NGE3NWNmYTAy
23423890 Hydraulic and Pneumatic Valves

METAL WORK PNEUMATIC METAL WORK PNEUMATIC

7051021200

Description

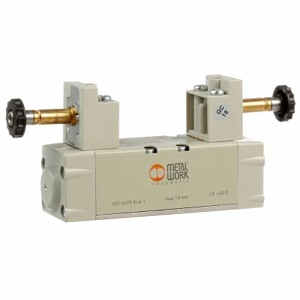

7051021200 PNEUMATIC VALVE ; ISO 5599 SIZE 1 5/2 DBL SOL 110VAC

Solenoid Valve; M5; 5 Port - 4 Way; 2 Position; Pneumatic; 24-110-220 VAC/50-60 Hz | 12-24 VDC; Solenoid - Air Pilot - Detent | Solenoid - Air Pilot - Detent Return; 145 PSI; 14 To 140 Deg F

Part #

7051021200

BDI #
23423890

Details

Request A Price RSD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
METAL WORK PNEUMATIC
Manufacturer Name
METAL WORK PNEUMATIC
Minimum Buy Quantity
N/A
UNSPSC
40141600
Weight / Kilogram
1
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
M5
Number of Ports/Way
5 Port | 4 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot - Detent | Solenoid - Air Pilot - Detent Return
Voltage
24-110-220 VAC/50-60 Hz | 12-24 VDC
Media
Pneumatic
Maximum Pressure
145 PSI
Operating Pressure Range
14.5 To 145 PSI
Operating Temperature Range
14 To 140 Deg F
Inch - Metric
Metric
Other Features
1100 L/Min Flow Rate | Electro-Pneumatic Type | Bistable | No Indication
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://metalwork.in
Weight / LBS
0.855
Long Description
Solenoid Valve; M5; 5 Port - 4 Way; 2 Position; Pneumatic; 24-110-220 VAC/50-60 Hz | 12-24 VDC; Solenoid - Air Pilot - Detent | Solenoid - Air Pilot - Detent Return; 145 PSI; 14 To 140 Deg F
Overall Width
1.575 Inch | 40 Millimeter
Overall Length
6.22 Inch | 158 Millimeter
Overall Height
2.677 Inch | 68 Millimeter
