8262H152VAC440/60D https://www.bdiexpress.com/medias/INDASVVALVEX-8262H128-SS-300x300.jpg?context=bWFzdGVyfHJvb3R8MjMwMzd8aW1hZ2UvanBlZ3xhR1JoTDJnNE5DOHhNRFl3TlRFME56STVNVFkzT0M5SlRrUkJVMVpXUVV4V1JWaGZPREkyTWtneE1qaGZVMU5mTXpBd2VETXdNQzVxY0djfDBjMjg4NGM3OTIxOWU1NmVkMDRmYjZmZDZiMzliMzQ3MGVhODkxZjNlZWYyOWM4Njg2NDVhYzMzNzQxMzQyN2Q
Back to search results
27172827 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

8262H152VAC440/60D

Description

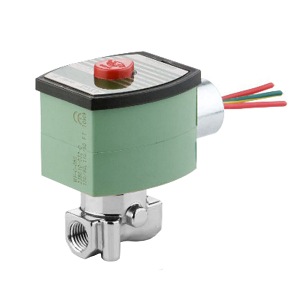

8262H152VAC440/60D SOLENOID VALVE, 1/4 X 9/32 2NO SS 10.1/F W (SMARTCATALOG)

Valve; 1/4" FNPT Port; 2 Port - 2 Way; 2 Position; Hydraulic - Pneumatic; 440/60 VAC; Solenoid/Spring Return; 30 PSI; -13 To 180 Deg F; Viton Seal; Stainless Steel

Part #

8262H152VAC440/60D

BDI #
27172827

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
ASCO VALVE
Minimum Buy Quantity
1
UNSPSC
40141600
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/4" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
440/60 VAC
Media
Hydraulic | Pneumatic
Maximum Pressure
30 PSI
Operating Pressure Range
0 To 30 PSI
Operating Temperature Range
-13 To 180 Deg F
Seal Type
Viton
Body Material
Stainless Steel
Inch - Metric
Inch
Other Features
0.96 Cv Factor | 9/32" Orifice Size | Air - Light Oil - Water Fluid | Normally Open | Ambient Temperature -25 To 55 Deg C
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.ascovalve.com
Long Description
Valve; 1/4" FNPT Port; 2 Port - 2 Way; 2 Position; Hydraulic - Pneumatic; 440/60 VAC; Solenoid/Spring Return; 30 PSI; -13 To 180 Deg F; Viton Seal; Stainless Steel
Overall Width
2.055 Inch | 52.2 Millimeter
Overall Length
3.195 Inch | 81.153 Millimeter
Overall Height
3.141 Inch | 79.781 Millimeter
