8342G003MAC110/120V 50/60HZ 3/8 X 3/16 https://www.bdiexpress.com/medias/INDASVVALVEX-8342G003-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8NTc2NDV8aW1hZ2UvanBlZ3xhR1F5TDJoalppOHhNRGd3TnpFMU1UUXlOell4TkM5SlRrUkJVMVpXUVV4V1JWaGZPRE0wTWtjd01ETmZRbEpUWHpNd01IZ3pNREF1YW5CbnxhMGZhNTEzYjM2MDJhNjJkMDRhMGU4YjI0NDUzNjc4MjIwMDI2NjNiMTkzMzQzMmY2OWVmYjI0ZWE4OGU0NGU5
27819699 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

8342G003MAC110/120V 50/60HZ 3/8 X 3/16

Description

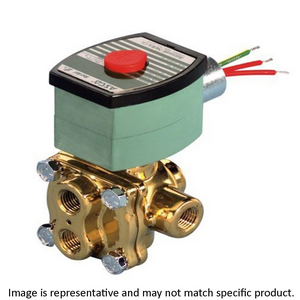

8342G003MAC110/120V 50/60HZ 3/8 X 3/16 ; SOLENOID VALVE

Solenoid Valve; 3/8" FNPT Port; 4 Port - 4 Way; 2 Position; 110 To 120/50-60 VAC; Hydraulic - Pneumatic; Solenoid/Spring Return; Air - Inert Gas 125 PSI/Light Oil - Water 100 PSI; 32 To 160 Deg F; Buna-N Seal; Brass

Part #

8342G003MAC110/120V 50/60HZ 3/8 X 3/16

BDI #
27819699

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
EMERSON INDUSTRIAL AUTOMATION
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
3/8" FNPT
Number of Ports/Way
4 Port | 4 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
110 To 120/50-60 VAC
Media
Hydraulic | Pneumatic
Maximum Pressure
Air - Inert Gas 125 PSI | Light Oil - Water 100 PSI
Operating Pressure Range
Air - Inert Gas 0 To 125 PSI | Light Oil - Water 0 To 100 PSI
Operating Temperature Range
32 To 160 Deg F
Seal Type
Buna-N
Body Material
Brass
Inch - Metric
Inch
Other Features
0.7 Cv Factor | 3/16" Orifice Size | Direct Acting | Air - Inert Gas - Light Oil - Water Fluid | Ambient Temperature 0 To 52 Deg C | Metering Device
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.ascovalve.com
Long Description
Solenoid Valve; 3/8" FNPT Port; 4 Port - 4 Way; 2 Position; 110 To 120/50-60 VAC; Hydraulic - Pneumatic; Solenoid/Spring Return; Air - Inert Gas 125 PSI/Light Oil - Water 100 PSI; 32 To 160 Deg F; Buna-N Seal; Brass
Overall Width
2.66 Inch | 67.564 Millimeter
Overall Height
4.38 Inch | 111.252 Millimeter
