EE8262R202V12-24/DC https://www.bdiexpress.com/medias/INDASVVALVEX-8262R105-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8NTc3Njd8aW1hZ2UvanBlZ3xhR1UwTDJnNU55OHhNRGd3TkRjNE5qZzRPRGN6TkM5SlRrUkJVMVpXUVV4V1JWaGZPREkyTWxJeE1EVmZRbEpUWHpNd01IZ3pNREF1YW5CbnxmNDg0ZWIzMTEwNjBkNDEyMTQ4MzA0YjRjNTQ4NTM0ZmY2OTE1ODI1ZTc0MTc3MmNmMjhhZWMzZGVhNmUwYjgz
27190603 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

EE8262R202V12-24/DC

Description

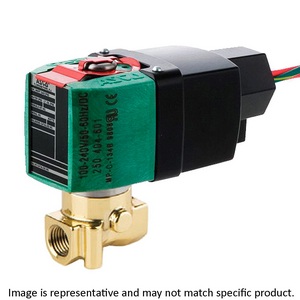

EE8262R202V12-24/DC SOLENOID VALVE, 1/4 X 5/32 2NC BRASS 1.2/H W (SMARTCATALOG)

Solenoid Valve; 1/4" FNPT Port; 2 Port - 2 Way; 2 Position; 12 To 24 VDC; Hydraulic - Pneumatic; Solenoid/Spring Return; Air - Inert Gas 300 PSI/Light Oil - Water 225 PSI; 32 To 180 Deg F; Viton Seal; Brass

Part #

EE8262R202V12-24/DC

BDI #
27190603

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
ASCO VALVE
Minimum Buy Quantity
1
UNSPSC
40141600
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/4" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
12 To 24 VDC
Media
Hydraulic | Pneumatic
Maximum Pressure
Air - Inert Gas 300 PSI | Light Oil - Water 225 PSI
Operating Pressure Range
Air - Inert Gas 0 To 300 PSI | Light Oil - Water 0 To 225 PSI
Operating Temperature Range
32 To 180 Deg F
Seal Type
Viton
Body Material
Brass
Inch - Metric
Inch
Other Features
0.52 Cv Factor | 5/32" Orifice Size | Air - Inert Gas - Light Oil - Water Fluid | Class I | Division 2 General Purpose | In/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.ascovalve.com
Long Description
Solenoid Valve; 1/4" FNPT Port; 2 Port - 2 Way; 2 Position; 12 To 24 VDC; Hydraulic - Pneumatic; Solenoid/Spring Return; Air - Inert Gas 300 PSI/Light Oil - Water 225 PSI; 32 To 180 Deg F; Viton Seal; Brass
Overall Length
3.993 Inch | 101.422 Millimeter
Overall Width
1.87 Inch | 47.5 Millimeter
Overall Height
3.092 Inch | 78.537 Millimeter
