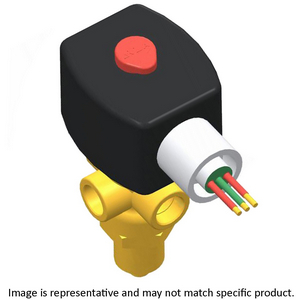

EFHC8320G182MODC125/DCD https://www.bdiexpress.com/medias/INDASVVALVEX-8320G174-EF-MO-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8Mzk2Mzd8aW1hZ2UvanBlZ3xhREU1TDJoa05TOHhNRGd3TXprMU1qSTFOVEF3Tmk5SlRrUkJVMVpXUVV4V1JWaGZPRE15TUVjeE56UmZSVVpmVFU5ZlFsSlRYek13TUhnek1EQXVhbkJufGFhNzJmYTJhN2ZhMmExODRkOGVmZmNmODEwNjRlMTI1N2UwODA0Mjk5MTNmMGFjMmQ5N2VkNDcyMDA2Y2M3OTQ
27078331 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

EFHC8320G182MODC125/DCD

Description

EFHC8320G182MODC125/DCD SOLENOID VALVE, 1/4 X 1/16 3NC BRASS 24.6/H W (SMARTCATALOG)

Valve; 1/4" FNPT Port; 3 Port - 3 Way; 2 Position; Hydraulic - Pneumatic; 125 VDC; Solenoid/Spring Return; 160 PSI; 32 To 150 Deg F; Buna-N Seal; Brass

Part #

EFHC8320G182MODC125/DCD

BDI #
27078331

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
ASCO VALVE
Minimum Buy Quantity
1
UNSPSC
40141600
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/4" FNPT
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
125 VDC
Media
Hydraulic | Pneumatic
Maximum Pressure
160 PSI
Operating Pressure Range
0 To 160 PSI
Operating Temperature Range
32 To 150 Deg F
Seal Type
Buna-N
Body Material
Brass
Inch - Metric
Inch
Other Features
0.09 Cv Factor | 1/16" Orifice Size | Normally Closed | Direct Acting | Ambient Temperature 0 To 40 Deg C | Manual Operator | Explosion Proof | Class H - Battery Charging Coil
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.ascovalve.com
Weight / LBS
1.5
Long Description
Valve; 1/4" FNPT Port; 3 Port - 3 Way; 2 Position; Hydraulic - Pneumatic; 125 VDC; Solenoid/Spring Return; 160 PSI; 32 To 150 Deg F; Buna-N Seal; Brass
Overall Height
4.748 Inch | 120.599 Millimeter
Overall Length
3.125 Inch | 79.375 Millimeter
Overall Width
1.95 Inch | 49.53 Millimeter
