EFHT8320G202AC115/50 https://www.bdiexpress.com/medias/INDASVVALVEX-8320G202-EF-SS-300x300.jpg?context=bWFzdGVyfHJvb3R8Mzg1NDN8aW1hZ2UvanBlZ3xhR0poTDJobFpTOHhNRGd3TXpnNE9UY3pNelkyTWk5SlRrUkJVMVpXUVV4V1JWaGZPRE15TUVjeU1ESmZSVVpmVTFOZk16QXdlRE13TUM1cWNHY3xjZTdiMWRhMGRjNWM3MjM2NjVlNjFlMzczYWE3MDZlZTU4NWVkYjhjYzZjMzY2ZmJjOWY2OWM4YTM0ZTQzZGNk
20703686 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

EFHT8320G202AC115/50

Description

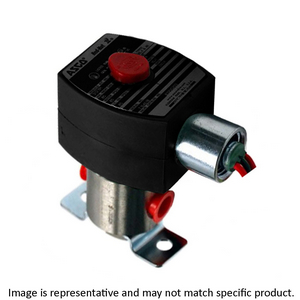

EFHT8320G202AC115/50 SOLENOID VALVE

Solenoid Valve; 1/4" FNPT Port; 3 Port - 3 Way; 2 Position; 115/50 VAC; Hydraulic - Pneumatic; Solenoid/Spring Return; 150 PSI; -40 To 200 Deg F; Buna-N Seal; Stainless Steel

Part #

EFHT8320G202AC115/50

BDI #
20703686

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
EMERSON INDUSTRIAL AUTOMATION
Minimum Buy Quantity
N/A
UNSPSC
40141600
Weight / Kilogram
0.005
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/4" FNPT
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
115/50 VAC
Media
Hydraulic | Pneumatic
Maximum Pressure
150 PSI
Operating Pressure Range
0 To 150 PSI
Operating Temperature Range
-40 To 200 Deg F
Seal Type
Buna-N
Body Material
Stainless Steel
Inch - Metric
Inch
Other Features
0.12 Cv Factor | 3/32" Orifice Size | Normally Closed | Direct Acting | Air - Inert Gas - Light Oil - Water Fluid | Ambient Temperature -40 To 52 Deg C | Explosion Proof | High Temperature
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.ascovalve.com
Long Description
Solenoid Valve; 1/4" FNPT Port; 3 Port - 3 Way; 2 Position; 115/50 VAC; Hydraulic - Pneumatic; Solenoid/Spring Return; 150 PSI; -40 To 200 Deg F; Buna-N Seal; Stainless Steel
Overall Height
3.73 Inch | 94.742 Millimeter
Overall Width
1.95 Inch | 49.53 Millimeter
