FSBV2525F https://www.bdiexpress.com/medias/INDDVCVALVEX-FSBV2525F-300x300.jpg?context=bWFzdGVyfHJvb3R8ODMzM3xpbWFnZS9qcGVnfGFETXlMMmcxTXk4eE1EYzNNRGt5TkRrMk1UZ3lNaTlKVGtSRVZrTldRVXhXUlZoZlJsTkNWakkxTWpWR1h6TXdNSGd6TURBdWFuQm58ZTRlNDA1MjVmZmYwMGMwNjkzODU3Zjc0YmZiNjVjYzBkOTZhZjQyZmM3ZmVkNTg2MjNkNWRjNDFjZWI2ZWE2Mw
Back to search results
19321520 Hydraulic and Pneumatic Valves

DIXON VALVE DIXON VALVE

FSBV2525F

Description

FSBV2525F

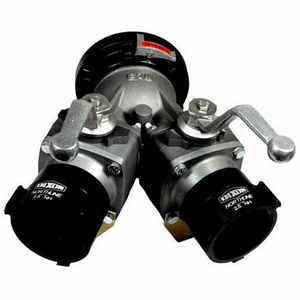

Ball Valve; 2-1/2" Storz | 2-1/2" FNST Port; 3 Port | 2 Way; 4 Position; Hydraulic; Hand Lever; 280 PSI; 0 To 70 Deg F; Aluminum

Part #

FSBV2525F

BDI #
19321520

Details

Request A Price CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
DIXON VALVE
Manufacturer Name
DIXON VALVE & COUPLING CO.
Minimum Buy Quantity
N/A
UNSPSC
40141607
Weight / Kilogram
2.95
Product Group - BDI
F02352
Valve Type
Ball
Port Type
2-1/2" Storz | 2-1/2" FNST
Number of Ports/Way
3 Port | 2 Way
Number of Positions
4 Position
Actuation
Hand Lever
Voltage
Not Applicable
Media
Hydraulic
Maximum Pressure
280 PSI
Operating Pressure Range
0 To 280 PSI
Operating Temperature Range
0 To 70 Deg F
Body Material
Aluminum
Inch - Metric
Inch
Other Features
Water Fluid | 2 Lever Handle | Hardcoat Anodized Finish
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.50
Noun
Valve
Keyword String
Ball
Manufacturer URL
http://www.orsnasco.com
Manufacturer Item Number
FSBV2525F
Weight / LBS
6.5
Long Description
Ball Valve; 2-1/2" Storz | 2-1/2" FNST Port; 3 Port | 2 Way; 4 Position; Hydraulic; Hand Lever; 280 PSI; 0 To 70 Deg F; Aluminum
Overall Length
9 Inch | 228.6 Millimeter
Overall Height
7 Inch | 177.8 Millimeter
Overall Width
8 Inch | 203.2 Millimeter
