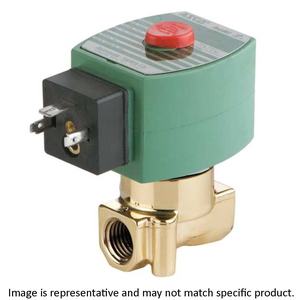

SC8262H202VAC24/60 https://www.bdiexpress.com/medias/INDASVVALVEX-8262H001-SC-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8NTE0ODh8aW1hZ2UvanBlZ3xhRFV3TDJoaFppOHhNRGd3TWpJNU1EZzFNVGczTUM5SlRrUkJVMVpXUVV4V1JWaGZPREkyTWtnd01ERmZVME5mUWxKVFh6TXdNSGd6TURBdWFuQm58YzU2NzdjMDA2ZTAzZGZkOGVlZTY0Mjk4ODJhMmY2YTFmZjZkNzJlNGQ0NzJmNDc0MmYwOWZmZDY5MzBmNTBkNA
20712262 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

SC8262H202VAC24/60

Description

SC8262H202VAC24/60 SOLND VALVE ; POR 1/4"X5/32" 2NC BRASS 10.1/FW

Solenoid Valve; 1/4" FNPT Port; 2 Port | 2 Way; 2 Position; 24/60 VAC; Hydraulic | Pneumatic; Solenoid | Spring Return; Air - Inert Gas 210 PSI | Light Oil 145 PSI | Water 200 PSI; 5 To 210 Deg F; Viton Seal; Brass

Part #

SC8262H202VAC24/60

BDI #
20712262

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
EMERSON INDUSTRIAL AUTOMATION
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0.005
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/4" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
24/60 VAC
Media
Hydraulic | Pneumatic
Maximum Pressure
Air - Inert Gas 210 PSI | Light Oil 145 PSI | Water 200 PSI
Operating Pressure Range
Air - Inert Gas 0 To 210 PSI | Light Oil 0 To 145 PSI | Water 0 To 200 PSI
Operating Temperature Range
5 To 210 Deg F
Seal Type
Viton
Body Material
Brass
Inch - Metric
Inch
Other Features
0.52 Cv Factor | 5/32" Orifice Size | Air - Inert Gas - Water - Light Oil Fluid | Normally Closed | Class F | High Temperature | DIN Connection
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.emerson.com
Long Description
Solenoid Valve; 1/4" FNPT Port; 2 Port | 2 Way; 2 Position; 24/60 VAC; Hydraulic | Pneumatic; Solenoid | Spring Return; Air - Inert Gas 210 PSI | Light Oil 145 PSI | Water 200 PSI; 5 To 210 Deg F; Viton Seal; Brass
Overall Width
1.95 Inch | 49.53 Millimeter
Overall Height
3.115 Inch | 79.121 Millimeter
Overall Length
2.705 Inch | 68.7 Millimeter
