VDW350-5G-2-01N-A-Q https://www.bdiexpress.com/medias/INDSMCVALVEX-VDW350-G-01-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8MTcwODB8aW1hZ2UvanBlZ3xhREJpTDJnNE5DOHhNRFl3TmpJd05UQTBNamN4T0M5SlRrUlRUVU5XUVV4V1JWaGZWa1JYTXpVd1gwZGZNREZmUWxKVFh6TXdNSGd6TURBdWFuQm58MzQ4MjRlMTk2NmI5OTVhOTQ4ODZlYzdjZTFiN2Y0NmVmMGI0MGIwNjVhMGJiOGZiZDljYmYwMjRlNmM2NjdhNw
Back to search results
25739999 Hydraulic and Pneumatic Valves

SMC SMC

VDW350-5G-2-01N-A-Q

Description

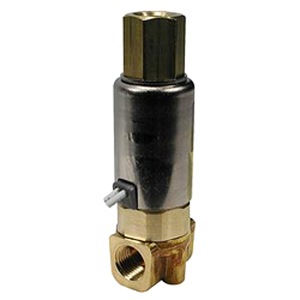

VDW350-5G-2-01N-A-Q SOLENOID VALVE

Valve; Solenoid; 1/8" FNPT Port; 3 Port - 3 Way; 2 Position; Hydraulic - Pneumatic; 24 VDC; Solenoid/Spring Return; 145 PSI; 14 To 122 Deg F; Viton Seal; Brass

Part #

VDW350-5G-2-01N-A-Q

BDI #
25739999

Details

107.7 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 107.70 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0
Product Group - BDI
F02234
Valve Type
Poppet | Solenoid
Port Type
1/8" FNPT
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
24 VDC
Media
Hydraulic | Pneumatic
Maximum Pressure
145 PSI
Operating Pressure Range
0 To 145 PSI
Operating Temperature Range
14 To 122 Deg F
Seal Type
Viton
Body Material
Brass
Inch - Metric
Inch
Other Features
0.16 - 0.13 Cv Factor Water - 0.16 - 0.12 Cv Air | For Water And Air | Normally Closed - Normally Open
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Poppet Solenoid
Manufacturer URL
https://www.smcworld.com
Weight / LBS
0.16281
Long Description
Valve; Solenoid; 1/8" FNPT Port; 3 Port - 3 Way; 2 Position; Hydraulic - Pneumatic; 24 VDC; Solenoid/Spring Return; 145 PSI; 14 To 122 Deg F; Viton Seal; Brass
Overall Height
3.248 Inch | 82.5 Millimeter
Overall Length
1.102 Inch | 28 Millimeter
Overall Width
1.102 Inch | 28 Millimeter
