VP342-3YO1-02FA https://www.bdiexpress.com/medias/INDSMCVALVEX-VP342-DO-300x300.jpg?context=bWFzdGVyfHJvb3R8MjI0Mzl8aW1hZ2UvanBlZ3xhR1kxTDJnMU15OHhNRFl3TmpNMU5ETTJOalE1TkM5SlRrUlRUVU5XUVV4V1JWaGZWbEF6TkRKZlJFOWZNekF3ZURNd01DNXFjR2N8Y2ZhMzYwZWEzZjgyMWQ3M2NmY2VkMDk1YzVkMjg2ZmEzMzk5MzQ0YjNhNTA0NGVmMGJmNmIyZGU4M2YxODU5OA
Back to search results
25710078 Hydraulic and Pneumatic Valves

SMC SMC

VP342-3YO1-02FA

Description

VP342-3YO1-02FA

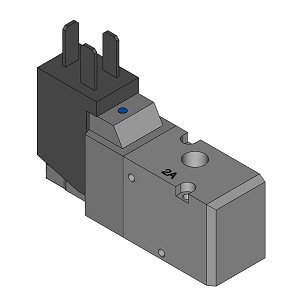

Valve; Solenoid; 1/4" G Port; 3 Port - 3 Way; 2 Position; Pneumatic; 110-115/50-60 VAC; Solenoid - Air Pilot/Air Pilot - Spring Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Aluminum

Part #

VP342-3YO1-02FA

BDI #
25710078

Details

134.18 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 134.18 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141641
Weight / Kilogram
0
Product Group - BDI
F02234
Valve Type
Poppet | Solenoid
Port Type
1/4" G
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
110-115/50-60 VAC
Media
Pneumatic
Maximum Pressure
102 PSI
Operating Pressure Range
30 To 102 PSI
Operating Temperature Range
14 To 122 Deg F
Seal Type
Rubber
Body Material
Aluminum
Inch - Metric
Inch
Other Features
1 Cv Factor | Body Ported | Internal Pilot | Standard | DIN Terminal Without Connector | Without Light and Surge Voltage Suppressor | Non Locking Push
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Poppet Solenoid
Manufacturer URL
https://www.smcworld.com
Weight / LBS
0.39904
Long Description
Valve; Solenoid; 1/4" G Port; 3 Port - 3 Way; 2 Position; Pneumatic; 110-115/50-60 VAC; Solenoid - Air Pilot/Air Pilot - Spring Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Aluminum
Overall Length
3.587 Inch | 91.1 Millimeter
Overall Height
1.996 Inch | 50.7 Millimeter
Overall Width
1.043 Inch | 26.5 Millimeter
